Hebei Changfeng Filter Material Co., Ltd.
One-stop solution for Filter production
Place of Origin: | An Ping China |
Brand Name: | Chang Feng |
Certification: | ISO9001 |
Model Number: | CF-22 |
Minimum Order Quantity: | 50 / set |
---|---|
Price: | Negotiable |
Packaging Details: | carton |
Delivery Time: | 8-10 work days |
Supply Ability: | 1000 Set/Sets per Day |
Product Name: | PU Filter Mould | SHAPE: | As Your OEM |
---|---|---|---|
Product: | Vehicle Mould | ISO: | ISO9001 |
Color: | White | Use Times: | 200 Times |
Product Material: | Plastic | Sample: | OK |
Shaping Mode: | Plastic Injection Mould | Application: | Air Filter Making ,pu Mould |
High Light: | OEM Mould filter element material,PU Filter Plastic Injection Mould,polypropylene Filter Plastic Injection Mould |
Air filter is widely used in many kinds of automobile and engineering equipment. In order to work smoothly, all machines need to replace the filter.

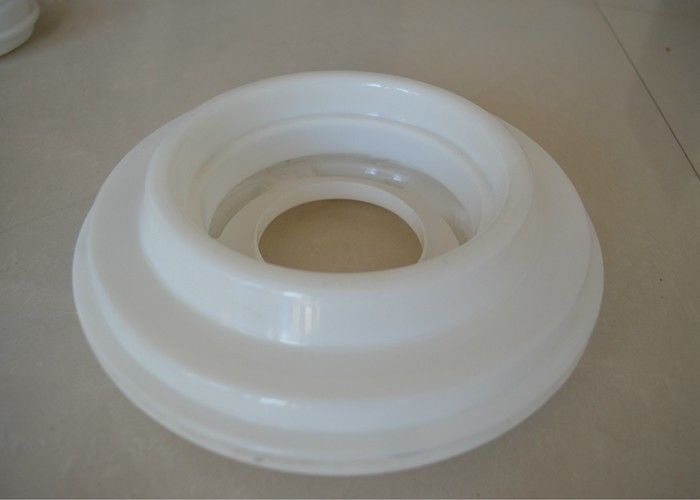

To make the filter, Pu mold is inevitable. High quality Pu mold can be reused up to 80 times, greatly reducing the cost of the filter. Pu mold is made of plastic PP material. Our company purchases high-quality raw materials to meet the quality requirements of customers at home and abroad.
2. Parameter table
Model | OEM | Application | Size(H*OD*ID) | |
2833 | 61-250161-2502 |
SAIC Motor D6114 950 |
327×φ279×φ149φ150×110 | |
2841 | 1109070-50A | FAW | 412×φ281×φ198 φ179×125 | |
3047 |
81.08304.0094 81.08304.0086 |
SHACMAN D2866 33373 |
472×φ305×φ168 464×φ169×φ129 |
|
3245 | A-9903A-9904 | Chunlan Truck | 450×φ318×φ207φ208×155 | |
2332 | C23632/1 | JAC | 320×φ227×φ116φ115×100 | |
2845D | 1-14215203-0 | CXZ/CYZ Stirrer | 453×φ280×φ176 | |
1534 | 2000 NAVECO | Φ150×78 | ||
1330 |
HCFHYUNDAI 310 Excavator |
304×φ128×φ82φ83 | ||
1027 | P82-1517P82-2858 | Forklift | 265×φ106×φ61φ62 | |
1826 | KAMA | 260×φ179×φ103 | ||
1432 | CASCADE Forklift | 320×φ139×φ82 | ||
2041 |
600-185-3110 611-185-3110 |
PC200-7 PC210-7 |
408×φ205×φ106 403×φ107 |
|
KU8464A/B |
610273 610274 |
CASCADE Loader 980F |
335×φ290×φ185 330×φ185 |
|
KU8145A/B |
61-2503 61-2504 |
Excavator 235,235B,235C 769,769B,768C Loader |
410×φ280×φ145 385×φ145 |
|
3055 | Air Compressor | Φ296×200 | ||
1227 | Air Compressor | Φ125×74 | ||
3662 |
A:106-3969 B:106-3973 |
CASCADE Generator | 620×Φ363×Φ228,620×Φ231×Φ176 | |
3047B | Volvo Generator | Φ305×Φ185 | ||
2242 | 916 Excavator | Φ225×182,Φ183×122 | ||
2851 |
A:DAF1295090 B:KALMAR923110.0578 |
DAF Truck 2CC Forklift |
510×Φ280×Φ145, Φ145×495×Φ145 |
3. Product use
It is used in the production of all air filters and oil diesel filters.
However, the air filter element is particularly important. Some large dust particles or paper scraps outside the car need to be filtered by the air filter element. The air flow sensor is responsible for the regulation of sending air into the next link. The throttle is to control the intake flow, and the accelerator pedal is directly controlled. Finally, a mixture of air and gasoline is synthesized for combustion in the engine.
4. Service
We are manufacturer
With 15 years of production experience
High efficiency.
Long working life.
Good anti-humidity performance
Special size available as you request
On-time delivery
Sample offered as request
5. Production process
1. Material-A should stirred evenly with plastic hand electric drill, material-B can shake, before used.
2. Open the electrocaloric plate temperature to 40-50 degrees, in winter material-A and material-B with a small container to preheat.
3. Wipe the mould with release agent
the air, workshop environment.
5. material-A and material-B are mixed at the mixture ratio of 100:40 ratio, then add 40% talcum powder(heavy calcium powder)(100:40:50±5), with 2800 rev / min motor to mix, mixing time determined by the amount of adhesive, per 100g of adhesive is approximately 7-10 seconds .
6. Pour the Mixed liquid into mould, then put the paper element and give a little pressure on it. 8-15 minutes later you can bring the mould down.
