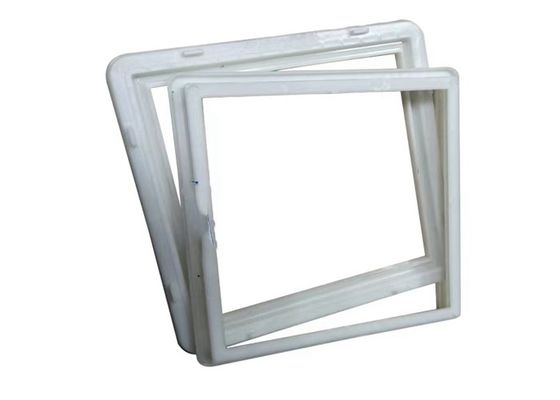

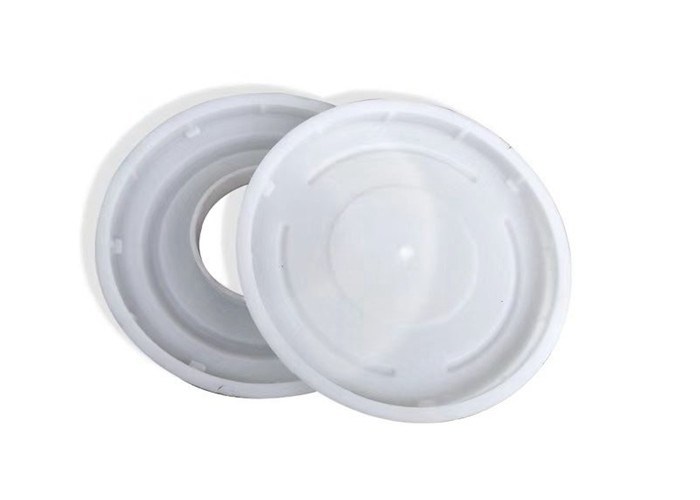

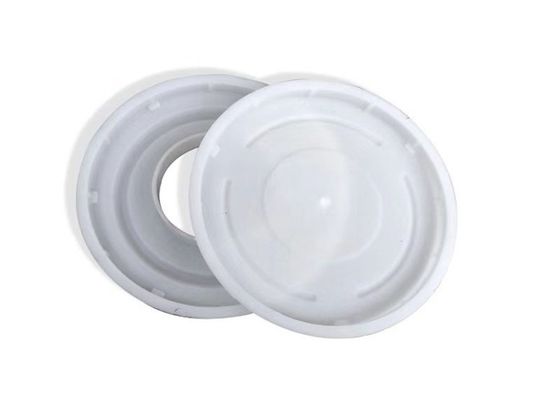

PU Mould Air Filters Material White For Forklift PP Material

Round Square Plastic PU Filter Accessories PU Mold

1. Product introduction


 Air filter is widely used in many kinds of automobile and engineering equipment. In order to work smoothly, all machines need to replace the filter.
To make the filter, Pu mold is inevitable. High quality Pu mold can be reused up to 80 times, greatly reducing the cost of the filter. Pu mold is made of plastic PP material. Our company purchases high-quality raw materials to meet the quality requirements of customers at home and abroad.


2. Parameter table




3. Technology

Using large injection molding machine and the corresponding mold extrusion into the filter Pu mold



4. Product advantage

The iron sheet end cover and rubber sealing ring of the air filter element are omitted, and it is the most ideal product for the production of pull type air filter element.

We have the ability to attend all the auto spare parts exhibition at home and aboard frequently Iran International Auto Parts Exhibition,Automechanika Shanghai(AMS)

Our own factory and stock ,3 full production lines for filter paper Full production line ,from raw material wood pulp to the filter paper

Our factory in Hebei China.Through all these years, with the high quality, best service and good reputation,our products sell to all over the world.


5. Production process

1. Material-A should stirred evenly with plastic hand electric drill, material-B can shake, before used.
2. Open the electrocaloric plate temperature to 40-50 degrees, in winter material-A and material-B with a small container to preheat.
3. Wipe the mould with release agent
the air, workshop environment.
5. material-A and material-B are mixed at the mixture ratio of 100:40 ratio, then add 40% talcum powder(heavy calcium powder)(100:40:50±5), with 2800 rev / min motor to mix, mixing time determined by the amount of adhesive, per 100g of adhesive is approximately 7-10 seconds .
6. Pour the Mixed liquid into mould, then put the paper element and give a little pressure on it. 8-15 minutes later you can bring the mould down.


6. Method of operation

1. Before using glue every day, mix material a evenly with electric hand drill, and shake material B.

2. Turn on the electric heating plate and adjust the temperature to 40-50 ℃. In winter, preheat a and B materials in small containers.

3. Wipe the mold with mold release agent.

4. Mix a and B materials in the ratio of 100:40, then add 40% talc powder, and use 2800 RPM motor to stir the mixed glue solution. The stirring time is determined by the amount of glue, about 7-10 seconds per 100 grams of glue.
