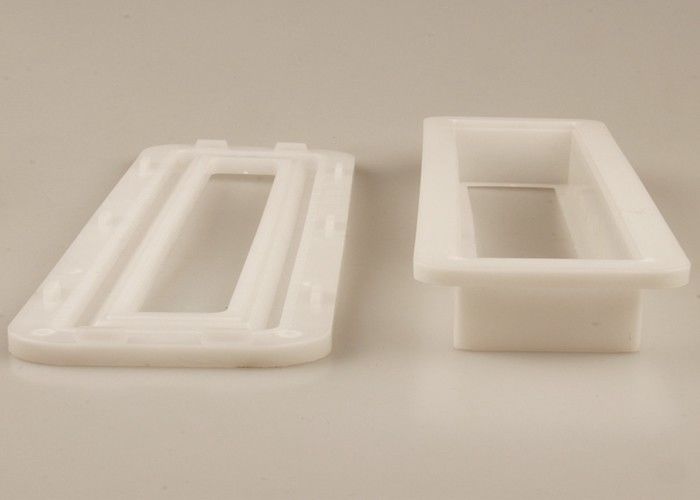

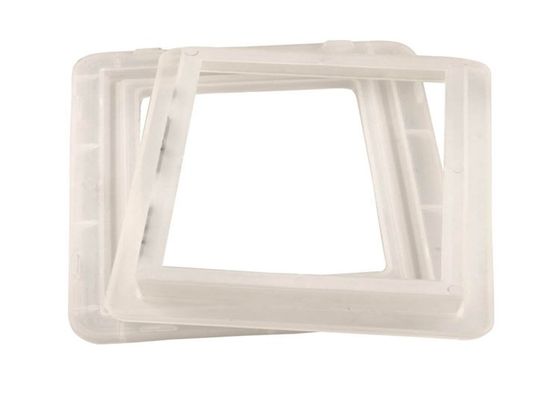

Round Rectangle Various Shapes Filter Accessories End Cover Mould Material PU
1. Product introduction
Air filter is widely used in many kinds of automobile and engineering equipment. In order to work smoothly, all machines need to replace the filter.
To make the filter, Pu mold is inevitable. High quality Pu mold can be reused up to 80 times, greatly reducing the cost of the filter. Pu mold is made of plastic PP material. Our company purchases high-quality raw materials to meet the quality requirements of customers at home and abroad.
2. Parameter table
Here are some specifications of the mold for your reference. If you need other shapes, we can customize them.
| OEM |
102558201,223080084,C11103,CF620.AF25551,AF25552,AF26659,911210100034,31121029, |
| c11100,AF26387,AF2888C1250,C14200,AF25725,P778984,P822768,8200819,C20500.AF2639, |
| P785388,CF1140,AF26501,AF26510,8970622940,C24745/1,C23115,AF24412,AF25589 |
| .CF710,P500185,AF25707,AF26569,P812363,c28003,AF2132M,Af25314,AF26249,AF26241, |
| AF25620,AF26625,C13145.AF25436,P827654,CF850,AF27867,C15300,Af26509,C17337, |
| P828889,AF25485,C16400,AF26393,C17004,87344136,ME01742,P780522,CF1141, |
| P611859,P777638,AF26614,P785589,AF25413,AF26397,AF25962,C23632/1,17801- |
| 3380,C24523.AF25567,P536457,AF26557,AF27857,AF26432,AF25437,P536577,P532474, |
| RE210103,C301240,AF26434,AF25619,AF25135M,C411776,GXD.6CO60-99410. |
| olor |
white |
| Name |
Pu mould |
| size |
139mm*114mm |
| surface |
chemical Heat Treatment |
| Treatment |
| Type |
Pu mould |
| Application |
Filter parts |
| certifivation] |
lso 9001 |
| weight |
specifications |
| Material |
PP |
| Product Name |
Air filter PU mold |
| Material |
Plastic / PP / |
| Application |
air filter making, pu mould |
| Shaping Mode |
Plastic lnjection mould |
| Use times |
200times |
| ISO |
ISO9001 |
| shape |
custom made |
| Surface Treatment |
Chemical Heat Treatment |
| Supply Ability |
2000 Set/Set per Day |
| |
|
3. Product characteristics
PP material is round, square and rectangular. It is suitable for PU material air filtration
4. Technology
Using large injection molding machine and the corresponding mold extrusion into the filter Pu mold
5. Product principle
Automobile air intake is as important as human breathing, and the air filter element is a very important filter in this link.
The filter elements of various vehicles are different, but their functions are completely the same. They are all filtration. The engine needs gas to ignite, and the gas first enters the intake pipe from outside the car, then passes through the air flow sensor, then passes through the throttle, and finally enters the engine for combustion
However, the air filter element is particularly important. Some large dust particles or paper scraps outside the car need to be filtered by the air filter element. The air flow sensor is responsible for the regulation of sending air into the next link. The throttle is to control the intake flow, and the accelerator pedal is directly controlled. Finally, a mixture of air and gasoline is synthesized for combustion in the engine.
6. Product use
It is used in the production of all air filters and oil diesel filters.
7. Product advantage
The iron sheet end cover and rubber sealing ring of the air filter element are omitted, and it is the most ideal product for the production of pull type air filter element.
We have the ability to attend all the auto spare parts exhibition at home and aboard frequently Iran International Auto Parts Exhibition,Automechanika Shanghai(AMS)
Our own factory and stock ,3 full production lines for filter paper Full production line ,from raw material wood pulp to the filter paper
Our factory in Hebei China.Through all these years, with the high quality, best service and good reputation,our products sell to all over the world.
8. Service
We are manufacturer
With 15 years of production experience
High efficiency.
Long working life.
Good anti-humidity performance
Special size available as you request
On-time delivery
Sample offered as request
9. FAQ
1.Q:Can you provide free samples?
A:Sorry, Free samples are not available. But after you place the order, samples cost would be return. Which is "FREE" in some way.
2.Q:Can we have the company LOGO to be printed on the products?
A:Of course. Private Label is absolutely welcome.
3. Q: Can you give me a discount price?
A: It is depending on the volume. The larger the volume is, the more discount you can enjoy.
4.Q:How do you guarantee your quality ?
A: Our workers and technical employees are with many years experiences to ensure the products are good. After production finished,check will be made by quality inspector.
5. Q:How can you guarantee the quality of mass production is same with the sample sent to me before?
6. Q: How can you deal with quality issues that customers feedback after receiving the goods?
A: We will follow below steps to solve the quality issues the may occur.
1) Customers take photos of unqualified goods and then our sales staff will send them to Quality Department to verify.
2) If the issue is confirmed, our sales staff will explain the root cause and take corrective actions in coming orders.
10. Production process
1. Material-A should stirred evenly with plastic hand electric drill, material-B can shake, before used.
2. Open the electrocaloric plate temperature to 40-50 degrees, in winter material-A and material-B with a small container to preheat.
3. Wipe the mould with release agent
the air, workshop environment.
5. material-A and material-B are mixed at the mixture ratio of 100:40 ratio, then add 40% talcum powder(heavy calcium powder)(100:40:50±5), with 2800 rev / min motor to mix, mixing time determined by the amount of adhesive, per 100g of adhesive is approximately 7-10 seconds .
6. Pour the Mixed liquid into mould, then put the paper element and give a little pressure on it. 8-15 minutes later you can bring the mould down.
11. Method of operation
1. Before using glue every day, mix material a evenly with electric hand drill, and shake material B.
2. Turn on the electric heating plate and adjust the temperature to 40-50 ℃. In winter, preheat a and B materials in small containers.
3. Wipe the mold with mold release agent.
4. Mix a and B materials in the ratio of 100:40, then add 40% talc powder, and use 2800 RPM motor to stir the mixed glue solution. The stirring time is determined by the amount of glue, about 7-10 seconds per 100 grams of glue.
12 . Do’s and don’ts
1. This product is generally stored in a dry room, and pay attention to waterproof, moisture, sun protection.
The inner plug and outer cover must be well covered to avoid the rubber absorbing moisture in the air and affecting the use effect.
2. A / b material can be used normally at room temperature (25 ℃), if the temperature is too high or too low, it will affect the use effect.
Manual cooling or heating must be used.
3. The mold must be coated with release agent before pouring, and the mold can be poured only after it is dry.
13. Company introduction
Hebei Anping Changfeng filter material Co., Ltd. is a solid factory for 25 years. Our company is a modern enterprise which produces and sells filter core raw materials, filter equipment and screen deep processing filter industry. After 25 years of efforts, it has gradually developed and expanded, with more than 300 engineers, technicians and workers. Our factory covers an area of 30 mu. 4 large workshops of 1000 square meters, two workshops of 500 square meters, with 30 press, 12 CNC punch machines, hydraulic press and lathe and other filter equipment welding machines.
The main products are: air filter equipment and all filter raw materials. Air filter, end cover, glue, filter paper, filter screen, rubber filter ring, rubber filter end cover mold, frame, filter equipment and other models are complete, high quality. The filter performance of automatic filter is high (good cleaning effect), automatic calorimeter (large capture quantity). It has long oscillation and high durability, which will not cause dust leakage. Water resistance, no blocking air entry, easy and light loading and unloading. In addition, there are screen deep processing filter products, oil and fuel engineering machine finished filter, petroleum ore screen pipe and other screen products. The company's products are sold to Russia, Britain, Africa, Australia and Southeast Asia and the Middle East and many other countries, well received by customers. Our company has a complete and scientific quality management system. The products are of good quality and various specifications. We uphold the business philosophy of "honesty, good quality, customer first", and in the spirit of mutual benefit, we are willing to establish good business relations with businesses all over the world. In the face of increasingly fierce market competition, the company carries out all staff training, cultivates talents, changes ideas, improves, strengthens cultivation, adjusts strategies, transforms local advantages into the core competitiveness of survival first and development later, so as to maintain a stable development momentum and meet challenges in the new century. Anping Changfeng filter material Co., Ltd. is recognized by customers for its integrity, strength and product quality. We should be responsible for every customer and every product.We have the ability to attend all the auto spare parts exhibition at home and aboard frequently Iran International Auto Parts Exhibition,Automechanika Shanghai(AMS)
Our own factory and stock ,3 full production lines for filter paper Full production line ,from raw material wood pulp to the filter paper
Our factory in Hebei China.Through all these years, with the high quality, best service and good reputation,our products sell to all over the world.
Hebei Anping Changfeng Co., Ltd. is located in No.5 filter material city, Anping County, Hebei Province, which is "the hometown of China international silk screen". It is adjacent to Beijing, Tianjin, Shijiazhuang, Baoding, Hengshui and other large and medium-sized cities, with superior geographical location and developed transportation and logistics. It is 250 kilometers away from Beijing Capital Airport and 200 kilometers away from Tianjin port. Welcome friends from all over the world to visit, guide and business negotiation. We will serve you wholeheartedly.
