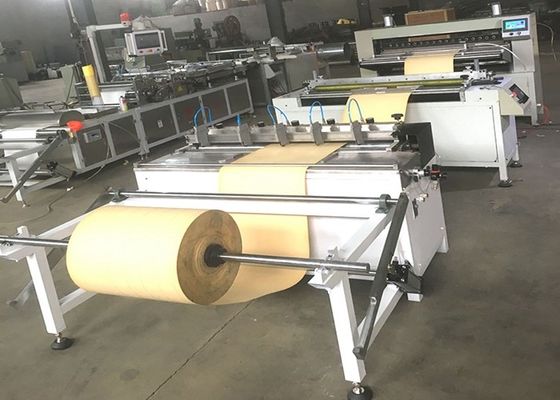

3d Origami Paper Cutting Machine 0.6 MPa Working Pressure For HEPA Filter

Product Details:

Place of Origin:	An Ping China
Brand Name:	Chang Feng
Certification:	ISO9001
Model Number:	9009-54-58

Payment & Shipping Terms:

Minimum Order Quantity:	>=1 Sets
Price:	Negotiable
Packaging Details:	wooden box packing Customized by customer requires
Delivery Time:	30 work days
Payment Terms:	L/C, T/T
Supply Ability:	200 Set/Sets per Year

Contact Now

Product Name:

HEPA Filter Making Machine

After Warranty Service:

Video Technical Support

Size:

Customized

Certificate:

ISO9001

Showroom Location:

None

Machinery Test Report:

Provided

Place Of Origin:

Hebei, China

Motor Power:

0.75kw

Working Pressure:

0.6 MPa

Color:

White,Customizable

High Light:

0.75kw 3d origami paper cutting machine

0.6 MPa 3d origami paper cutting machine

HEPA Filter origami folding machine

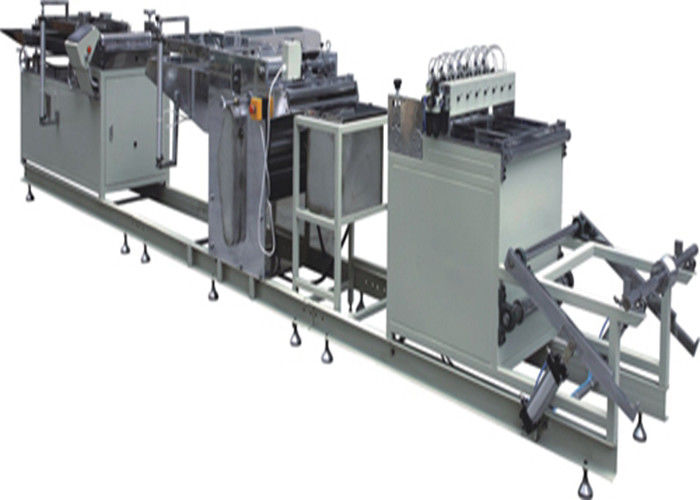

PLGT-420 Fully Automatic Drum Type Environmental Protection Filter Element Origami Production Equipment

1. Product introduction

1. The main components of the equipment
1. Automatic paper tray
2. Filter paper pre-cutting machine
3. Steam device
4. Automatic counter
5. Disc six-group roller creasing machine
6. Preheat setting device before folding filter paper
7. Folding receiving mechanism
8. Conveying device
9. Filter paper heater

2.Parameter table

1. Production speed	0~30m/min
2. The maximum width of the product	420mm
3. The minimum width of the product	30mm
4. Maximum folding height	50mm
5. Minimum folding height	12mm
6. The specifications of the roller	Can be customized according to user requirements
7. Temperature control range	normal temperature ~ 300 degrees Celsius
8. Heating power	14kw
9. Total power of production line	16kw
10. Working pressure	0.6MPa
11. Power supply voltage	380V/50HZ
12. Machine weight	1000kg
13. Dimensions	6000×900×1200mm (length×width×height)

3. Product characteristics

1. The pre-slitting adopts pneumatic slitting knife, which is easy to adjust, easy to use, and pressure balanced.
2. This machine adopts a steam device, so that the filter paper is not easy to be damaged when the indentation is folded.
3. Six sets of rollers are on the same disc, which is easy to replace and adapt to different specifications of production.
4. This machine can form a bulge in the filter paper to keep a certain distance and uniformity between the folded filter paper and the paper.
5. The filter paper automatically completes the process of counting, folding, preheating and shaping on the production line, with a high degree of automation.
6. This machine is equipped with a stainless steel conveying device, which can make the filter paper more even and flat during the folding process.
7. This machine is controlled by computer and is easy to operate.

4. Product use

This set of production line is suitable for folding and forming environmentally-friendly filter elements.

Applicable materials include filter paper, non-woven fabric, non-woven felt, wave fiber material, composite material, PP / PET polyester material, metal material.The production line is suitable for automobile three-way industry, hydraulic industry, purification industry and water treatment industry.
