Product Details:
Place of Origin: An Ping China
Brand Name: Chang Feng
Certification: ISO9001
Model Number: 9009-13-02
Payment & Shipping Terms:
Minimum Order Quantity: >=1 Sets
Price: Negotiable
Packaging Details: wooden box packing Customized by customer requires
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 200 Set/Sets per Year
Contact Now
Detailed Product Description
Product Name: HEPA Filter Making Machine Voltage: 220
Power: 3000 Weight: 600kg
Certificate: ISO9001 Machinery Test Report: Provided
Place Of Origin: Hebei, China Production Speed: 35-45 Pieces/min
Color: Blue ,Customizable Dimensions: 700mm×985mm×2060mm
High Light:

iso certificate automatic glue filling machine


semi automatic glue filling machine


pu glue filling machine

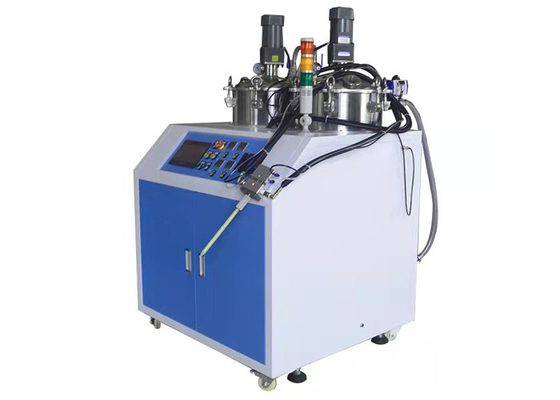

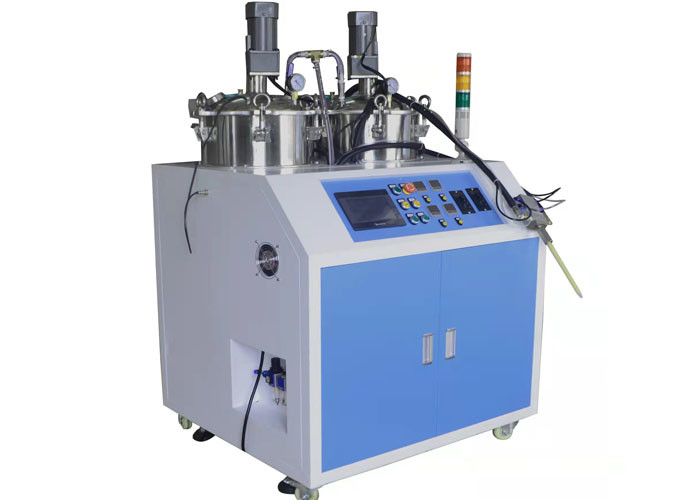

Semi-Automatic PU Glue Filling Machine HEPA Filter Making Machine


1. Product introduction


The glue injection machine is also called glue filling machine, glue dispensing machine, glue machine, etc., mainly because the name of each person and place is different, but its function and working principle are the same.e


2.Parameter table


1. Production capacity 35-45 pieces/min
2. Sealing diameter Φ56- Φ110mm
3. Sealing parts assembly height 50-270mm
4. Applicable steel plate thickness 0.5-0.8mm
5. Turntable equal score 12 Equally divided
6. Motor power 5 KW
7. Working pressure 0.6Mpa
8. Power supply voltage 380V/ 50HZ
9. Machine weight 600kg
10 Dimensions:
1. Host L×W×H 700mm ×985mm×2060mm
2. Feeding conveyor belt L×W×H 5050mm×340mm×1415mm
3. Discharging conveyor belt L×W×H 2050mm×250mm×925mm
4. Electric control box L×W×H 500mm×320mm×1085mm



3. Product characteristics


Save labor. One glue filling machine can be equivalent to the glue filling amount of 5-7 people, and can operate continuously for a long time, which can effectively solve the distribution of human resources in off-season and peak season, so as to solve the problem of high labor cost. The glue filling machine can better save glue, glue kettle and other consumables, so as to reduce the cost.
1. This machine adopts electric and pneumatic combined control, and the feeding movement of the first roller (two) and the second roller (two) is completed by two cam movements. 2. The feed motion of the cam roller is completed by the cylinder according to the predetermined program to the workpiece and the return of the workpiece at one time. 3. The material of the sealing roller is Cr 12 mov, which has high hardness after quenching, good wear resistance, and increases the service life. 4. This machine adopts imported divider for more accurate indexing, thus ensuring the quality of the sealing. 5. This machine is a fully automatic high-speed sealing machine, the whole process of loading, sealing and unloading is automatic cycle, without manual operation.


4. Product use


Injection molding machines are widely used in Electromechanical, plastic and other industries. Injection molding machines can reduce labor force, reduce cost, ensure safety, improve labor productivity, improve product quality and realize full automation equipment. They can be divided into horizontal, vertical and vertical composite types, which can heat plastic and form. With the development of industry, the manipulator of injection molding machines can load, mix and Automatic mold installation and other aspects will move towards intelligent development in an all-round way.


Pu Semi Automatic Glue Filling Machine Iso Certificate 0Pu Semi Automatic Glue Filling Machine Iso Certificate 1Pu Semi Automatic Glue Filling Machine Iso Certificate 2Pu Semi Automatic Glue Filling Machine Iso Certificate 3
