Rotary Pleating HEPA Filter Making Machine 9009-1200 3400mm Length

Rotary Pleating HEPA Filter Making Machine 9009-1200 3400mm Length

  • Rotary Pleating HEPA Filter Making Machine 9009-1200 3400mm Length
  • Rotary Pleating HEPA Filter Making Machine 9009-1200 3400mm Length
Rotary Pleating HEPA Filter Making Machine 9009-1200 3400mm Length
Product Details:
Place of Origin: An Ping China
Brand Name: Chang Feng
Certification: ISO9001
Model Number: 9009-1200
Payment & Shipping Terms:
Minimum Order Quantity: >=1 Sets
Price: Negotiable
Packaging Details: wooden box packing Customized by customer requires
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 200 Set/Sets per Year
Contact Now
Detailed Product Description
Product Name: HEPA Filter Making Machine After Warranty Service: Video Technical Support
Length: 3400mm Height: 1600mm
Size: Customized Width: 510mm
Certificate: ISO9001 Showroom Location: None
Machinery Test Report: Provided Warranty Of Core Components: 1 Year
Place Of Origin: Hebei, China Motor Power: 0.75kw
Working Pressure: 0.6 MPa Color: White,Customizable
Application: Air Filter,Hydraulic Filter System Material: PP / Glass Fiber/PET/compound Polyester
High Light:

1600mm HEPA Filter Making Machine

,

9009-1200 HEPA Filter Making Machine

,

3400mm rotary pleating machine

Filter Accessories Production Rotary Pleated Pre-Slit Three-Part Combination HEPA Filter Making Machine

1. Product introduction

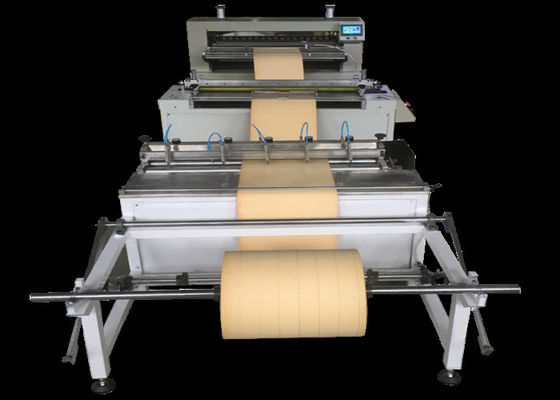

SLITTING MACHINE 1200 Type
1. Paper feeding speed: 0.5 - 12m/min
2. Width available: 35 - 1100mm
3. Power: 0.75KW 380V
4. Machine weight: 350KG
5. Machine dimension: 1250mm x 680mm x 1120mm

MARKING MACHINE 1200 Type
1. Marking height: 55mm
2. Width maximum: 50mm
3. Power: 1.5KW 380V
4. Machine weight: 400KG
5. Machine dimension: 1500mm x 850mm x 1200mm

PLEATING MACHINE 1200 Type
1. MAX.Pleating height: 55mm
2. Layers pleated: 1 - 3
3. Pleating speed: 20 - 100 pleats/min
4. Max. pleating width : 1100mm
5. Thickness of material: 0.5 - 3mm
6. Speed adjustable motor: 1.5KW
7. Power: 1.5KW 380V Heater Power: 3KW Heat Temperature: 160°C
8. Machine weight: 750KG
9. Machine dimension: 1430mm x 1550mm x 1400mm

2.Parameter table



ltem name Factory Spare Parts car oil filter
Quantity The Quantity is unlimted the more quantity the better price
Packing details A.neutral packing
  B.original packing
  C.according to customer's requirement .
Advantages 1.We have stock for the parts
  2.High quality,Reliable and Durable
  3.Short Lead Time
  4.100%test before selling
  5.Best after-sale service
  6.We can supply the samples to customers and accept the trial order with small quantity



3. Product characteristics


The whole machine is driven by 7 servo motors to realize full four axis control.The main advantage is that there is no need for the operator to adjust the folding height manually, and all parameters can be adjusted on the touch screen, which greatly reduces the adjustment time of the equipment required for replacing products, and makes the operation more convenient.



4. Method of operation


There is no need for the operator to manually adjust the folding height, and all parameters can be adjusted on the touch screen, which greatly reduces the adjustment time of the equipment required to replace the product and makes the operation more convenient.



5. FAQ


Q: Are you the factory or trading company?
A: We are the first manufacturer of filter/application from 1990.
Q: What is your Minimum Order Quantity of your Product?
A: Normally the MOQ is 1 set;
Q: What's your payment term?
A: Usually, TT, Paypal, Alpay, Wei Xin, western union, can be selected according to your convenience
Q: What's your after-sales service?
A: Free online Technology Services 24h hours or engineers are available to serve machines overseas but travel cost will be born by your side;
Q: How Arrive to the factory?
A:If you fly, you can go to zhengding international airport. If you take the train, you can go to hengshui railway station. We will pick you up when you arrive.



Rotary Pleating HEPA Filter Making Machine 9009-1200 3400mm Length 0


Rotary Pleating HEPA Filter Making Machine 9009-1200 3400mm Length 1Rotary Pleating HEPA Filter Making Machine 9009-1200 3400mm Length 2Rotary Pleating HEPA Filter Making Machine 9009-1200 3400mm Length 3Rotary Pleating HEPA Filter Making Machine 9009-1200 3400mm Length 4
