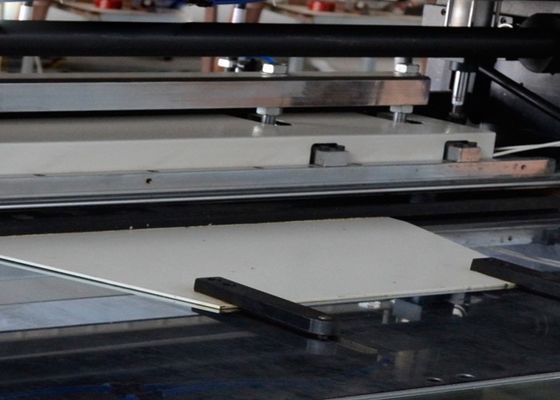

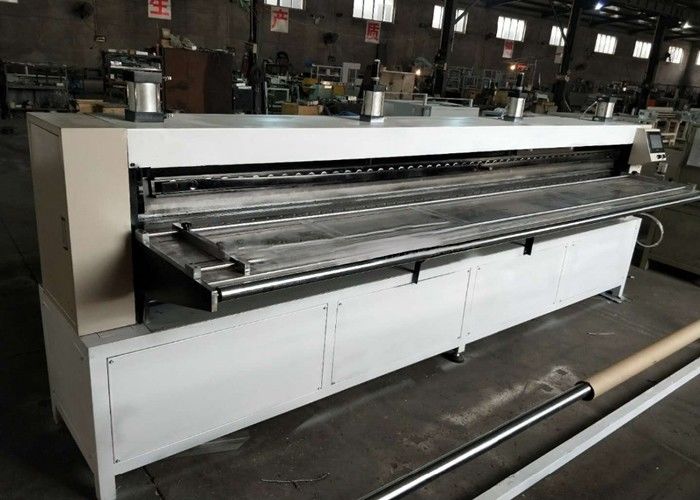

Automatic Pleating Machine Used With Filter Paper, Auto Filter Accessories Oil Filter Making Machine
1. Product introduction
The hvac oil filter making machines are robust, compact and highly functional machines. They are capable of pleating multi-layered media i.e. fabric and wire mesh, multiple layers of filter papers etc. They are versatile and can pleat varieties of materials like:Paper,Cardboard,Synthetic Materials,Copper,Aluminum,Metallic Foils
2. Parameter table
| Product name |
knife ppleating machine by munualcontrol for oil filter pleating |
| Advantage |
low cost,easy operation |
| Material |
paper |
| Feature |
oil filter media pleating |
| Application |
Pleating oil filter media |
| Efficiency |
95%-99% |
| Certification |
CE,ISO |
| (L*W*H) |
1430×1550×1400mm/ |
| Basic weight |
780kg |
| speed |
20-120pleats/min |
| Voltage |
380V |
| Warranty |
1Year |
| supply ability |
500 Set/Set per Year |
| Pleating height |
8 - 55mm |
| Layers pleated |
44201 |
| Pleating speed |
20 - 150 pleats/min |
| Max. pleating width |
1100mm |
| Thickness of material |
0.5 - 4mm |
| Speed adjustable motor |
1.5KW |
| Power |
1.5KW 380V Heater Power: 3KW Heat Temperature: 200°C |
| Machine weight |
800kgs |
| Machine dimension |
1430mm x 1550mm x 1400mm |
| Alternative width |
B-600,B-800,B-1500,B-2100,B3000 mm |
| Alternative height |
15-160 mm |
3. Product principle
The machine can also fold all irregular folding height changes.
The folding knife angle of this machine can be changed at will to ensure that no filter paper material will be damaged in folding.
4. Product use
The device is suitable for folding any filter paper material or multi-layer material.Applicable materials include filter paper, non-woven fabric, non-woven felt, wave fiber material, composite material, PP / PET polyester material, metal material.The production line is suitable for automobile three-way industry, hydraulic industry, purification industry and water treatment industry.
5. FAQ
Q: Are you the factory or trading company?
A: We are the first manufacturer of filter/application from 1990.
Q: What is your Minimum Order Quantity of your Product?
A: Normally the MOQ is 1 set;
Q: What's your payment term?
A: Usually, TT, Paypal, Alpay, Wei Xin, western union, can be selected according to your convenience
Q: What's your after-sales service?
A: Free online Technology Services 24h hours or engineers are available to serve machines overseas but travel cost will be born by your side;
Q: How Arrive to the factory?
A:If you fly, you can go to zhengding international airport. If you take the train, you can go to hengshui railway station. We will pick you up when you arrive.
