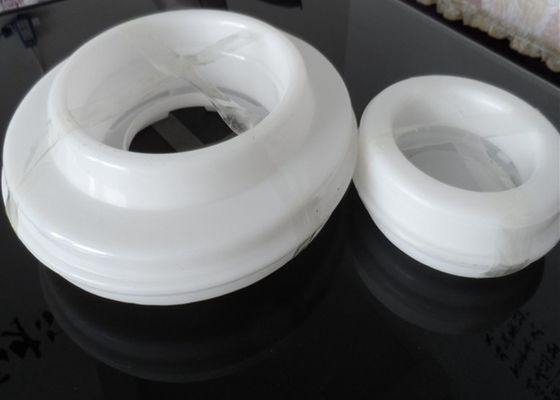

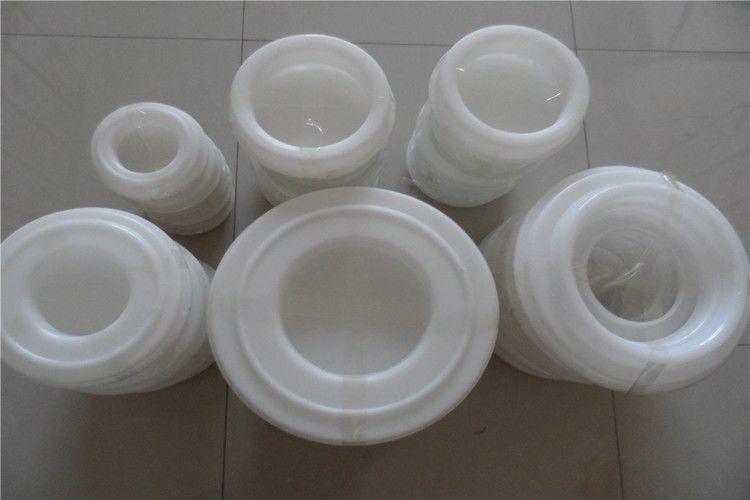

polypropene Air Filters Material AF25552 AF26659 Plastic Mould

polypropene Air Filters Material AF25552 AF26659 Plastic Mould

  • polypropene Air Filters Material AF25552 AF26659 Plastic Mould
  • polypropene Air Filters Material AF25552 AF26659 Plastic Mould
polypropene Air Filters Material AF25552 AF26659 Plastic Mould
Product Details:
Place of Origin: An Ping China
Brand Name: Chang Feng
Certification: ISO9001
Model Number: CF-22
Payment & Shipping Terms:
Minimum Order Quantity: 50 / set
Price: Negotiable
Packaging Details: carton
Delivery Time: 8-10 work days
Supply Ability: 1000 Set/Sets per Day
Contact Now
Detailed Product Description
Product Name: PU Filter Mould Product Material: Plastic
Material: PP Stock: In Stock
Product: Vehicle Mould Mould Life: 200 Times
ISO: ISO9001 Place Of Origin: Hebei,China
Color: White-Customer Settings Surface Treatment: Chemical Heat Treatment
High Light:

Polypropene plastic injection mould


AF26659 Air Filters Material


AF25552 Air Filters Material

AF25551,AF25552,AF26659,Plastic Mold Injection Molding Air Filters Material

1. Product introduction

 Air filter is widely used in many kinds of automobile and engineering equipment. In order to work smoothly, all machines need to replace the filter.

To make the filter, Pu mold is inevitable. High quality Pu mold can be reused up to 80 times, greatly reducing the cost of the filter. Pu mold is made of plastic PP material. Our company purchases high-quality raw materials to meet the quality requirements of customers at home and abroad.


2. Parameter table


  Here are some specifications of the mold for your reference. If you need other shapes, we can customize them.

OEM 102558201,223080084,C11103,CF620.AF25551,AF25552,AF26659,911210100034,31121029,
olor white
Name Pu mould
size 139mm*114mm
surface chemical Heat Treatment
Type Pu mould
Application Filter parts
certifivation] lso 9001
weight specifications
Material PP
Product Name Air filter PU mold
Material Plastic / PP /
Application air filter making, pu mould
Shaping Mode Plastic lnjection mould
Use times 200times
shape custom made
Surface Treatment Chemical Heat Treatment
Supply Ability 2000 Set/Set per Day


3. Method of operation


1. Before using glue every day, mix material a evenly with electric hand drill, and shake material B.

2. Turn on the electric heating plate and adjust the temperature to 40-50 ℃. In winter, preheat a and B materials in small containers.

3. Wipe the mold with mold release agent.

4. Mix a and B materials in the ratio of 100:40, then add 40% talc powder, and use 2800 RPM motor to stir the mixed glue solution. The stirring time is determined by the amount of glue, about 7-10 seconds per 100 grams of glue.

5. Pour the evenly mixed liquid into the mold, and then put the paper core to exert pressure.

6. Demould after 10 minutes.


4 . Dos and donts


1. This product is generally stored in a dry room, and pay attention to waterproof, moisture, sun protection. The inner plug and outer cover must be well covered to avoid the rubber absorbing moisture in the air and affecting the use effect.

2. A / b material can be used normally at room temperature (25 ℃), if the temperature is too high or too low, it will affect the use effect. Manual cooling or heating must be used.

3. The mold must be coated with release agent before pouring, and the mold can be poured only after it is dry.



polypropene Air Filters Material AF25552 AF26659 Plastic Mould 0


polypropene Air Filters Material AF25552 AF26659 Plastic Mould 1polypropene Air Filters Material AF25552 AF26659 Plastic Mould 2
