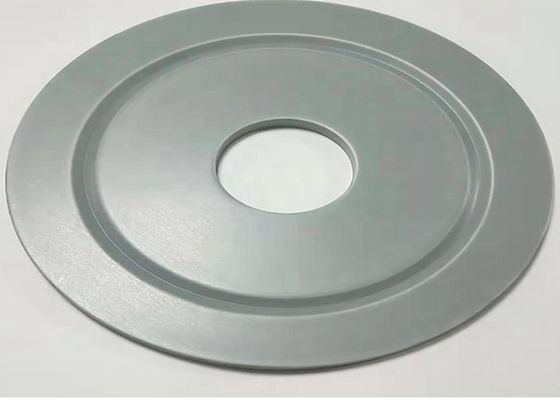

0.4-0.8mm Thickness Filter End Caps , Hydrophobic Air Filter Cover

Product Details:

Place of Origin:	An Ping China
Brand Name:	ChangFeng
Certification:	ISO9001
Model Number:	9009-54-84

Payment & Shipping Terms:

Minimum Order Quantity:	10 / set
Price:	Negotiable
Packaging Details:	covers' packaging: 1.Plastic sheets inside 2.PP Woven bag outside 3.According to your requiry
Delivery Time:	8-10 work days
Payment Terms:	L/C, T/T
Supply Ability:	5000 Set/Sets per Week filter end caps 5000 sets/week

Contact Now

Detailed Product Description

Product Name:	Filter End Caps	Core Components:	Bearing, Pump
Brand Name:	CHANGFENG	Size:	Customzised
Place Of Origin:	Hebei, China	Warranty:	3 Months
Certificate:	ISO9001	Thickness:	0.4-0.8mm
Dimension:	As Your Requirements	Type:	Air Filter Cartridge End Caps
High Light:	OEM hydrophobic air filter cover , 0.8mm Filter End Caps , 0.4mm Filter End Caps

Various Models And Sizes Of Round And Square Metal Filter Accessories Filter End Caps

1. Product Description

The filter end cap is mainly used to seal both ends of the filter material and support the filter material to effectively improve the bearing capacity of the filter material. Chang Feng has been specialized in metal filter end caps since 1996 with a wide range of existing molds for air filter end caps for the cartridge filter. We are able to advise customers on the best material proper thickness opt for. Welcome to contact us to have further discussion.

2. Specifications

There are parts of specifications of filter caps we made for clients before for your reference. If you need other shapes, we could make customization.

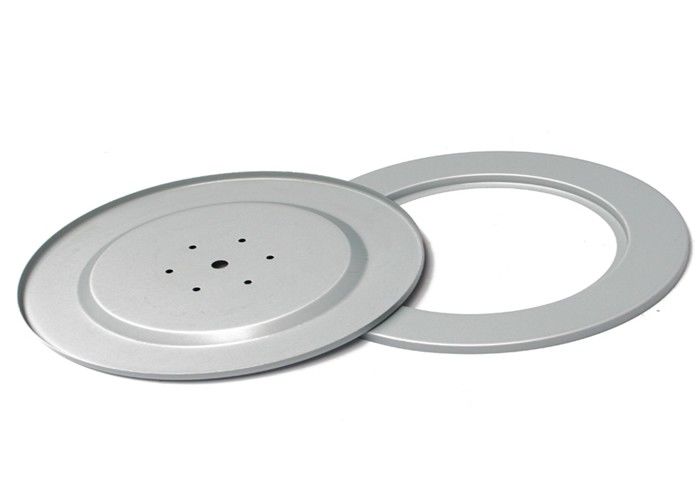

Open Round End Cap with Tri-Bolt Holes
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.5	215.9
Inner height	0.54	13.716
Outer height	0.5	12.7
Inner rim diameter	6.75	171.45
Open Round End Cap with Outer Lip
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.5	215.9
Inner diameter	0.625	15.875
Outer height	0.368	9.3472
Lip	0.375	9.525
Open Round End Cap
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.5	215.9
Inner height	0.5	12.7
Outer Height	0.5	12.7
Closed Round End Cap
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.375	212.725
Inner height	0.5	12.7
outer height	0.5	12.7
Closed Round End Cap with Bolt Hole
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.375	212.725
Inner height	0.5	12.7
Outer height	0.5	12.7
Bolt Hole	0.625	15.875
Open Round End Cap with Flange
	Inches	Millimeters
Outer diameter	5.75	146.05
Inner diameter	2.5	63.5
Inner height	0.5	12.7
Outer height	0.278	7.0612
Closed Round End Cap
	Inches	Millimeters
Outer diameter	5.25	133.35
Inner diameter	2.5	63.5
Inner height	0.875	22.225
Outer height	0.172	4.3688

3. Method of operation

This product is a sealing product at both ends of the filter element, which can be stuck with specific glue.

4. Note:

Please distinguish the top and bottom before using the end cap, and be careful not to leak the glue during the sealing operation.

5. Production Process and Packing

There is the production process of expanded metal mesh. We can see that there are strict procedures from raw materials to finished products. Chang feng could provide production visualization service for clients, which ensures customers can grasp the production schedule in time.
