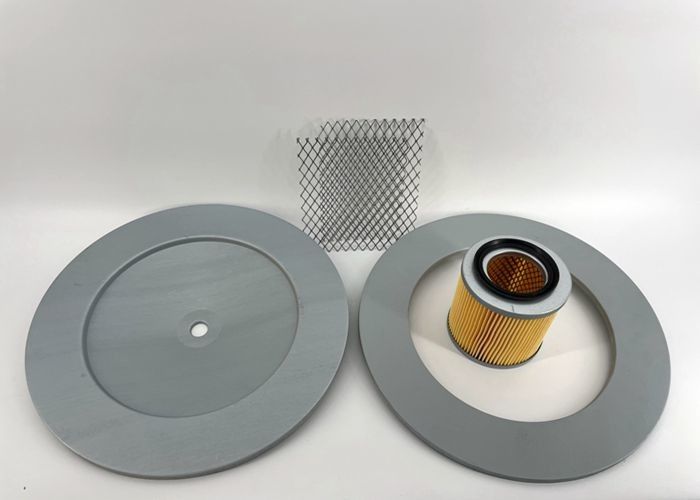

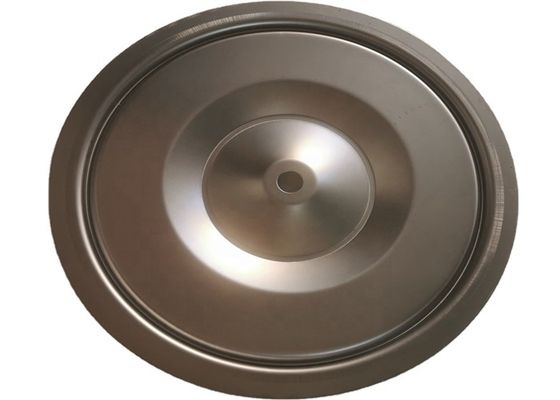

Metal Sintered Filter End Caps 0.172 Inches Outer Height

Metal Sintered Filter End Caps 0.172 Inches Outer Height

  • Metal Sintered Filter End Caps 0.172 Inches Outer Height
  • Metal Sintered Filter End Caps 0.172 Inches Outer Height
Metal Sintered Filter End Caps 0.172 Inches Outer Height
Product Details:
Place of Origin: An Ping China
Brand Name: ChangFeng
Certification: ISO9001
Model Number: 9009-54-84
Payment & Shipping Terms:
Minimum Order Quantity: 10 / set
Price: Negotiable
Packaging Details: covers' packaging: 1.Plastic sheets inside 2.PP Woven bag outside 3.According to your requiry
Delivery Time: 8-10 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 Set/Sets per Week filter end caps 5000 sets/week
Contact Now
Detailed Product Description
Product Name: Filter End Caps Thickness: 0.4-0.8mm
MOQ: 50 PCS Certifications: ISO 9001
Filter Type: Metal Sintered End Cap: Pressed Steel Cap
Core Components: Rubber Mat, Filter Mesh Outer Diameter: 20.00 Mm To 1000 Mm, Or Customized
Material: Galvanized, Stainless Steel, Anti-fingerprint Types: Open/closed, With/without Holes, Steps, Customized
High Light:

finned air cleaner cover

,

0.172 Inches Filter End Caps

,

Metal Sintered Filter End Caps

Stamping End Cover Of Fingerprint Proof Galvanized Sheet For Air Filter



1. Product Description



 Filter end cap is mainly used to seal both ends of the filter material and support the filter material to effectively improve the bearing capacity of the filter material. Dongjie has been specialized in the metal filter end caps for decades with a wide range of end caps for the cartridge filter. We are able to advice customers on the best material proper thickness opt for.



2. Specifications



Open Round End Cap with Tri-Bolt Holes
  Inches Millimeters
Outer diameter 12.75 323.85
Inner diameter 8.5 215.9
Inner height 0.54 13.716
Outer height 0.5 12.7
Inner rim diameter 6.75 171.45
Open Round End Cap with Outer Lip
  Inches Millimeters
Outer diameter 12.75 323.85
Inner diameter 8.5 215.9
Inner diameter 0.625 15.875
Outer height 0.368 9.3472
Lip 0.375 9.525
Open Round End Cap
  Inches Millimeters
Outer diameter 12.75 323.85
Inner diameter 8.5 215.9
Inner height 0.5 12.7
Outer Height 0.5 12.7
Closed Round End Cap
  Inches Millimeters
Outer diameter 12.75 323.85
Inner diameter 8.375 212.725
Inner height 0.5 12.7
outer height 0.5 12.7
Closed Round End Cap with Bolt Hole
  Inches Millimeters
Outer diameter 12.75 323.85
Inner diameter 8.375 212.725
Inner height 0.5 12.7
Outer height 0.5 12.7
Bolt Hole 0.625 15.875
Open Round End Cap with Flange
  Inches Millimeters
Outer diameter 5.75 146.05
Inner diameter 2.5 63.5
Inner height 0.5 12.7
Outer height 0.278 7.0612
Closed Round End Cap
  Inches Millimeters
Outer diameter 5.25 133.35
Inner diameter 2.5 63.5
Inner height 0.875 22.225
Outer height 0.172 4.3688








5. Product advantage



1. 25 years' experience in producing filter end caps.
2. Accurate size according to customer requirements
3. Ensure the filters have a longer life with excellent heat and chemical resistance.
4. Effectively improve the capacity of the filter material.
5. Various exist mold to save your cost.
6. Qualified raw materials with certifications to make the filter caps.


8. FAQ



1.Certificates:

RoHs,UL,SGS,MSDS,DIN53438

2.Payment terms:

50% deposit upon getting the order,balance against the B/L copy.

3.Delivery date:

About 7 working days(≤500pcs), special order is negotiable to be quicker.

4.Sample Terms:

We can supply 1-2 small samples for tree but express cost is covered by your side.

5.Minimum Order Quantity:

No strict principle for standard sizes,but 50pcs for non-standard dimensions or types.

6.Price Terms:

EX-WORKS, FOB, CNF, CIF OR DDU is available and up to you.

7.Lead time:

3 Days for a 40ft container, weeks for two 40ft container.
