customized Filter End Caps 323.85mm Inner diameter Galvanized steel Material

Product Details:

Place of Origin:	An Ping China
Brand Name:	chang feng
Certification:	ISO9001
Model Number:	9009-54-84

Payment & Shipping Terms:

Minimum Order Quantity:	10 / set
Price:	Negotiable
Packaging Details:	covers' packaging: 1.Plastic sheets inside 2.PP Woven bag outside 3.According to your requiry
Delivery Time:	8-10 work days
Payment Terms:	L/C, T/T
Supply Ability:	5000 Set/Sets per Week filter end caps 5000 sets/week

Contact Now

Detailed Product Description

Product Name:	Filter End Cap	Core Components:	Bearing, Pump
Brand Name:	CHANGFENG	Size:	Customzised
Place Of Origin:	Hebei, China	Warranty:	3 Months
Dimension:	As Your Requirements	Type:	Air Filter Cartridge End Caps
Surface Treatment:	Zinc-plated/powdered/anti-fingerprint/plastic Spraying Or Else	Material:	Galvanized, Metal, Steel, Anti-fingerprint
High Light:	OED air filter rain cap , 323.85mm Filter End Caps , OED Galvanized Steel Filter End Caps

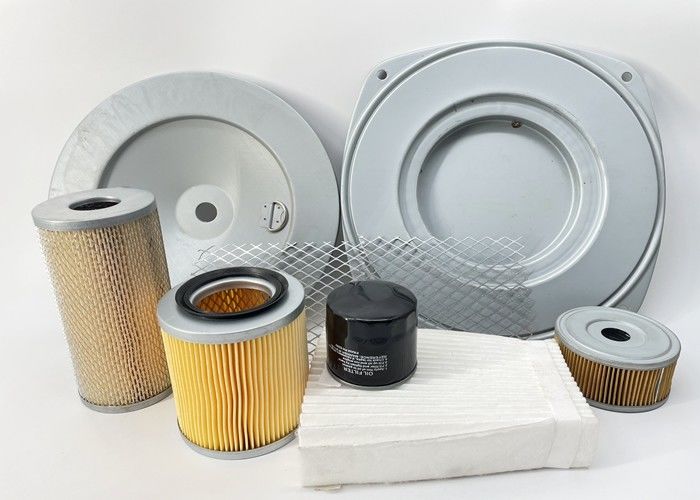

Filter Accessories Metal Air Filter Filter End Caps

1. Product Description

The filter end cap is mainly used to seal both ends of the filter material and support the filter material to effectively improve the bearing capacity of the filter material. Chang Feng has been specialized in metal filter end caps since 1996 with a wide range of existing molds for air filter end caps for the cartridge filter. We are able to advise customers on the best material proper thickness opt for. Welcome to contact us to have further discussion.

2. Specifications

There are parts of specifications of filter caps we made for clients before for your reference. If you need other shapes, we could make customization.

Open Round End Cap with Tri-Bolt Holes
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.5	215.9
Inner height	0.54	13.716
Outer height	0.5	12.7
Inner rim diameter	6.75	171.45
Open Round End Cap with Outer Lip
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.5	215.9
Inner diameter	0.625	15.875
Outer height	0.368	9.3472
Lip	0.375	9.525
Open Round End Cap
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.5	215.9
Inner height	0.5	12.7
Outer Height	0.5	12.7
Closed Round End Cap
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.375	212.725
Inner height	0.5	12.7
outer height	0.5	12.7
Closed Round End Cap with Bolt Hole
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.375	212.725
Inner height	0.5	12.7
Outer height	0.5	12.7
Bolt Hole	0.625	15.875
Open Round End Cap with Flange
	Inches	Millimeters
Outer diameter	5.75	146.05
Inner diameter	2.5	63.5
Inner height	0.5	12.7
Outer height	0.278	7.0612
Closed Round End Cap
	Inches	Millimeters
Outer diameter	5.25	133.35
Inner diameter	2.5	63.5
Inner height	0.875	22.225
Outer height	0.172	4.3688

3. Characteristics

Product Name	OEM Filter End Caps
Material	Galvanized steel, stainless steel, anti-fingerprint, copper/brass, etc customized
Thickness	0.30 mm to 3.00 mm
Outer Diameter	20.00 mm to 1000 mm
Types	Open/closed, with/without holes, customized
Delivery Time	According to customer's requirement
Packing	Polybag/Piece or customized
Applications	Dust filters, air filter, fuel filter, oil filter, air compressor, water filter, activated carbon filters cartridges, etc.
OEM	Available
Quality Control	ISO Certification
After-sale Service	Product test report, online follow-up.

4. Applications

Changfeng supplied filter end caps/filter covers are widely used for dust filters, air filters, oil filters, fuel filters, activated carbon filter cartridges.
