20-75mm Car Air Filter Making Machine 780kg 0.5Mpa Air Pressure

Product Details:

Place of Origin:	An Ping China
Brand Name:	Chang Feng
Certification:	ISO9001
Model Number:	9009-54-88

Payment & Shipping Terms:

Minimum Order Quantity:	>=1 Sets
Price:	Negotiable
Packaging Details:	wooden box packing Customized by customer requires
Delivery Time:	8-10 work days
Payment Terms:	L/C, T/T
Supply Ability:	200 Set/Sets per Year

Contact Now

Detailed Product Description

Product Name:	Air Filter Making Machine	Dimension(LWH):	1800mm X 1220mm X 1350mm
After-sales Service Provided:	Free Spare Parts, Video Technical Support, Field Installation,	Function:	Pleaeting Air Filter Paper
Type:	Paper Folding Machine	Applicable Row Material:	Air Filter Paper
Automaticity:	Computerized	Voltage:	380v
Weight:	780kg	Certification:	CE,ISO
High Light:	air filter pleating machine , 0.5Mpa Car Air Filter Making Machine , 780kg Car Air Filter Making Machine

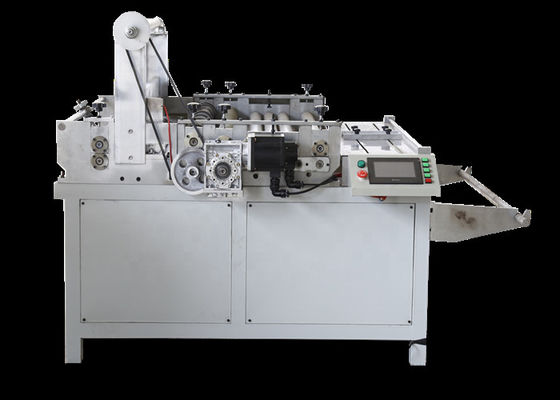

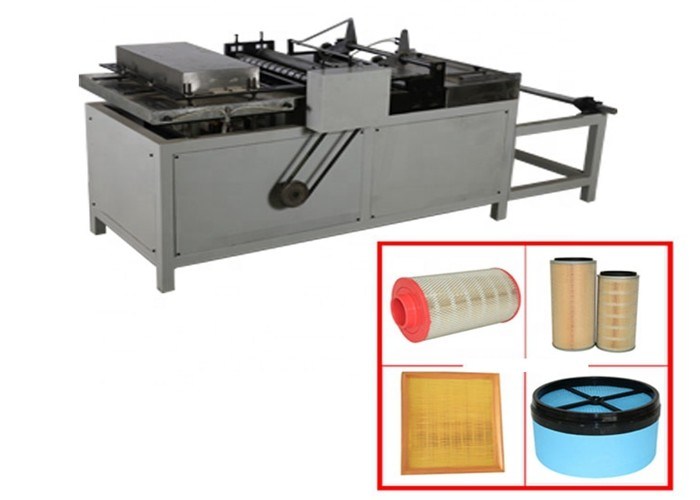

20-75mm Rotary Pleating Factory Air Filter Pleating Making Machine

1. Product introduction

Rotary type pleating machine is a type of pleating machine designed for high speed production. They are capable of producing pleats of range of widths and depths.

The rotary pleating machines are best suited machines for those places where there is a requirement of high production volumes of single specific filter size and pleat depth. These machines are usually not adjustable with regard to pleat sizes but the pleats of different sizes can be made by changing the set of pleating rollers. The rollers of various sizes can be used for making different pleat sizes. It's equipped with automatic pre-slitting, pleating system, electric (after) heating system, automatic counter system. According to customer's demands, main machine, supplement part (for Transferring the paper), working platform, decoiler (paper roll holder) can separately be ordered. This machine can be made as customer's requirements.

2. Parameter table

ZZHG 4A-6 Rotary pleating machine 650		ZZHG 4A-9 Rotary pleating machine 780
Pleating height	20-75mm	20-75mm
Max.pleating width	600mm	750mm
Speed	5-70m/min	5-70m/min
Motor	13kw	14kw
Air pressure	0.5Mpa	0.5Mpa
Weight	780KG	900KG
This machine contains constant powder brake, heating, humidification, indentation, slitting, counting, folding, heating and shaping

3. Service

1. Making the sample until you are satisfied with it.
2. Providing production schedule photos to ensure you know every process.
3. Offering professional one-on-one service and replying your E-mail within three hours
4. Shipment sample for checking before shipment.
5. Priority to get the our latest product information after our cooperation
15 days is on approval 10000 kilometers is replaceable
15 days is on approval 10000 kilometers is replaceable, the details are as follows
Logo is greater difference with the confirmation sample
Material is greater difference with the confirmation sample
Design is greater difference with the confirmation sample

4. FAQ

1.Q:Can you provide free samples?
A:Sorry, Free samples are not available. But after you place the order, samples cost would be return. Which is "FREE" in some way.
2.Q:Can we have the company LOGO to be printed on the products?
A:Of course. Private Label is absolutely welcome.
3. Q: Can you give me a discount price?
A: It is depending on the volume. The larger the volume is, the more discount you can enjoy.
4.Q:How do you guarantee your quality ?
A: Our workers and technical employees are with many years experiences to ensure the products are good. After production finished,check will be made by quality inspector.
5. Q:How can you guarantee the quality of mass production is same with the sample sent to me before?
A: Our warehouse staff will leave another same sample in our company, with your company name marked on it, which our production will be based on.
6. Q: How can you deal with quality issues that customers feedback after receiving the goods?
A: We will follow below steps to solve the quality issues the may occur.
1) Customers take photos of unqualified goods and then our sales staff will send them to Quality Department to verify.
2) If the issue is confirmed, our sales staff will explain the root cause and take corrective actions in coming orders.
