Inserter Folding Car Air Filter Making Machine Paper Non Woven Fabric

Inserter Folding Car Air Filter Making Machine Paper Non Woven Fabric

  • Inserter Folding Car Air Filter Making Machine Paper Non Woven Fabric
  • Inserter Folding Car Air Filter Making Machine Paper Non Woven Fabric
Inserter Folding Car Air Filter Making Machine Paper Non Woven Fabric
Product Details:
Place of Origin: An Ping China
Brand Name: Chang Feng
Certification: ISO9001
Model Number: 9009-06-04
Payment & Shipping Terms:
Minimum Order Quantity: >=1 Sets
Price: Negotiable
Packaging Details: wooden box packing Customized by customer requires
Delivery Time: 8-10 work days
Payment Terms: L/C, T/T
Supply Ability: 200 Set/Sets per Year
Contact Now
Detailed Product Description
Product Name: Air Filter Making Machine Warranty: 1Year
Automaticity: Sure Voltage: 380v
Weight: 650kg Certification: CE,ISO
Applicable Industries: Car Maintenance Dimension(L*W*H): 1800 * 700 * 1000m
Type: Paper Folding Machine/Clapper After-sales Service Provided: Free Spare Parts, Engineers Available To Service Machinery Overseas
High Light:

inserter car air filter making machine


paper car air filter making machine


nonwoven fabric air filter making machine

Inserter Folding Filter Paper Non-Woven Fabric Inserter Folding Filter Paper Non-Woven Fabric


1. Product introduction


The folding machine is mainly used for folding paper of various sizes and thicknesses within the design range. It is suitable for large quantities of folding of fast printing centers, production enterprises, official documents and business letters.

It's equipped with advanced gluing machine and the thermal adhesive melts quicker.

Easy operation and high efficiency.


2. Parameter table


Width available 70mm - 320mm
Pleating height 14mm - 75mm
Speed 5m - 50m/minute
Motor power 7.5KW
Air pressure 0.2 - 0.3Mpa
Machine weight 700KG
Main Machine Body Dimension 1800 * 700 * 1000m
Gluing Machine Dimension 820 * 680 * 1330mm


3. Product advantage


The feeder system is mainly composed of a fan and a paper suction feeder head. The fan has two outlets, one for suction and one for blowing.

1. The filter material is glued and folded on the same machine. After the filter paper is formed, it is transported by a longer conveyor belt so that the hot melt adhesive can be cured and cut to the required length.
2. Both the host and the conveyor are controlled by the frequency converter, which is easy to adjust.
3. The travel distance of the filter material after gluing can be adjusted within a certain range, which is conducive to the dry humidity of the hot melt adhesive, so that it can be folded firmly.
4. Six sets of rollers are on the same disk, which is easy to replace and adapt to the production of different specifications.
5. The glue melting speed is fast, and the amount of glue can be adjusted through the frequency converter.
6. This machine has high production efficiency and good product flatness.
The company can also customize origami production lines of different specifications according to your needs.


4. Packing method


The machine adopts the common special packaging for foreign trade. For the packaging of locomotive, the base will be timely processed and organized with four skids, two end logs and bottom plates, as well as the columns, diagonal braces and other components in the separated side plates, and the required beams and plates will be transported to the packaging workshop.


5. company introduction

Hebei Anping Changfeng filter material Co., Ltd. is a solid factory for 25 years. Our company is a modern enterprise which produces and sells filter core raw materials, filter equipment and screen deep processing filter industry. After 25 years of efforts, it has gradually developed and expanded, with more than 300 engineers, technicians and workers. Our factory covers an area of 30 mu. 4 large workshops of 1000 square meters, two workshops of 500 square meters, with 30 press, 12 CNC punch machines, hydraulic press and lathe and other filter equipment welding machines.
The main products are: air filter equipment and all filter raw materials. Air filter, end cover, glue, filter paper, filter screen, rubber filter ring, rubber filter end cover mold, frame, filter equipment and other models are complete, high quality. The filter performance of automatic filter is high (good cleaning effect), automatic calorimeter (large capture quantity). It has long oscillation and high durability, which will not cause dust leakage. Water resistance, no blocking air entry, easy and light loading and unloading. In addition, there are screen deep processing filter products, oil and fuel engineering machine finished filter, petroleum ore screen pipe and other screen products. The company's products are sold to Russia, Britain, Africa, Australia and Southeast Asia and the Middle East and many other countries, well received by customers. Our company has a complete and scientific quality management system. The products are of good quality and various specifications. We uphold the business philosophy of "honesty, good quality, customer first", and in the spirit of mutual benefit, we are willing to establish good business relations with businesses all over the world. In the face of increasingly fierce market competition, the company carries out all staff training, cultivates talents, changes ideas, improves, strengthens cultivation, adjusts strategies, transforms local advantages into the core competitiveness of survival first and development later, so as to maintain a stable development momentum and meet challenges in the new century. Anping Changfeng filter material Co., Ltd. is recognized by customers for its integrity, strength and product quality. We should be responsible for every customer and every product.
Hebei Anping Changfeng Co., Ltd. is located in No.5 filter material city, Anping County, Hebei Province, which is "the hometown of China international silk screen". It is adjacent to Beijing, Tianjin, Shijiazhuang, Baoding, Hengshui and other large and medium-sized cities, with superior geographical location and developed transportation and logistics. It is 250 kilometers away from Beijing Capital Airport and 200 kilometers away from Tianjin port. Welcome friends from all over the world to visit, guide and business negotiation. We will serve you wholeheartedly.

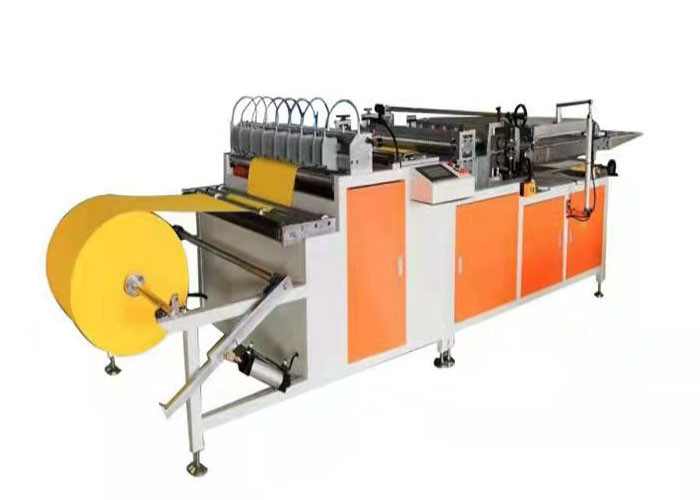

Inserter Folding Car Air Filter Making Machine Paper Non Woven Fabric 0

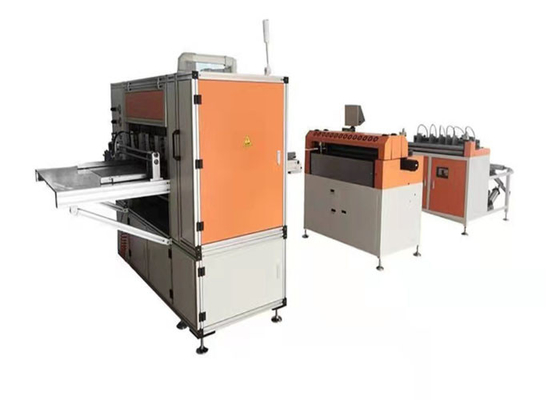

Inserter Folding Car Air Filter Making Machine Paper Non Woven Fabric 1Inserter Folding Car Air Filter Making Machine Paper Non Woven Fabric 2
Inserter Folding Car Air Filter Making Machine Paper Non Woven Fabric 3
