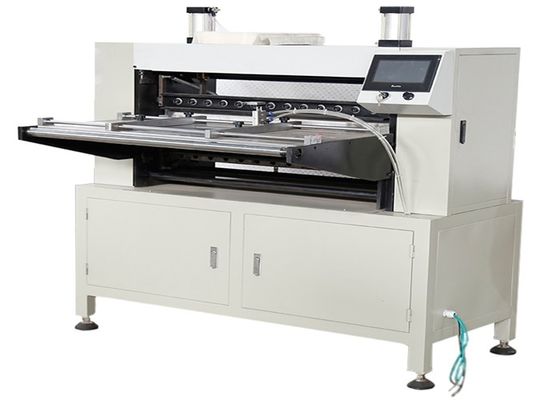

1100mm Filter Paper Pleating Machine 200 C Degree Working Temperature

Product Details:

Place of Origin:	An Ping China
Brand Name:	Chang Feng
Certification:	ISO9001
Model Number:	9009-54-88

Payment & Shipping Terms:

Minimum Order Quantity:	>=1 Sets
Price:	Negotiable
Packaging Details:	wooden box packing Customized by customer requires
Delivery Time:	8-10 work days
Payment Terms:	L/C, T/T
Supply Ability:	200 Set/Sets per Year

Contact Now

Detailed Product Description

Product Name:	Air Filter Making Machine	Dimension(LWH):	1430mm X 1550mm X 1400mm
Power:	3KW Heat Temperature: 200°C	Machine Type:	Rotary Pleating Machine
Type:	Paper Folding Machine	Applicable Industries:	Air Filter Pleating
Function:	Pleaeting Air Filter Paper	Voltage:	380V Or 220V
Applicable Row Material:	Air Filter Paper	Weight:	800kg
Certification:	CE,ISO	Warranty:	1 Year
High Light:	220V filter paper pleating machine , 200 C Degree fabric pleating machine , 1100mm filter paper pleating machine

1100mmHeat Temperature: 200°C Fully Automatic Fabric Pleating Machine

1. Product introduction

This machine can pleating : filter paper,wiresh, window screen, cardboard , synthetic , copper , aluminum , Metallic Foils and so on.

2. Parameter table

Pleating height	8 - 55mm
Layers pleated	1 - 5
Pleating speed	20 - 150 pleats/min
Max. pleating width	1100mm
Thickness of material	0.5 - 4mm
Speed adjustable motor	1.5KW
Power	1.5KW 380V Heater Power: 3KW Heat Temperature: 200°C
Machine weight	800kgs
Machine dimension	1430mm x 1550mm x 1400mm
Alternative width	B-600,B-800,B-1500,B-2100,B3000 mm
Alternative height	15-160 mm

3. Product advantage

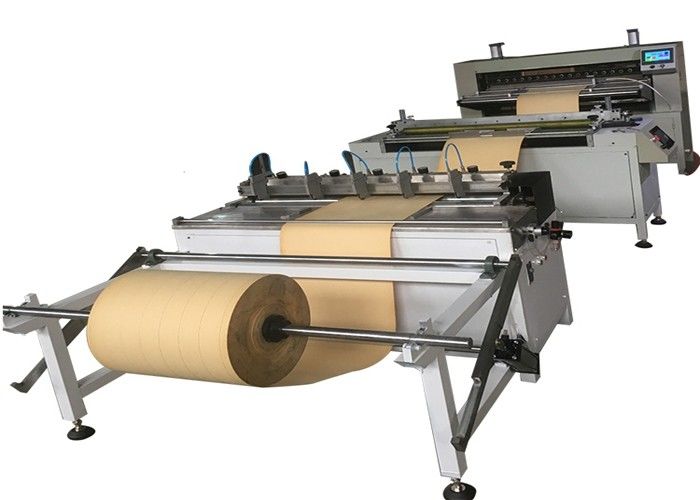

1. The filter material is glued and folded on the same machine. After the filter paper is formed, it is transported by a longer conveyor belt so that the hot melt adhesive can be cured and cut to the required length.
2. Both the host and the conveyor are controlled by the frequency converter, which is easy to adjust.
3. The travel distance of the filter material after gluing can be adjusted within a certain range, which is conducive to the dry humidity of the hot melt adhesive, so that it can be folded firmly.
4. Six sets of rollers are on the same disk, which is easy to replace and adapt to the production of different specifications.
5. The glue melting speed is fast, and the amount of glue can be adjusted through the frequency converter.
6. This machine has high production efficiency and good product flatness.

4. FAQ

1.Q:Can you provide free samples?
A:Sorry, Free samples are not available. But after you place the order, samples cost would be return. Which is "FREE" in some way.
2.Q:Can we have the company LOGO to be printed on the products?
A:Of course. Private Label is absolutely welcome.
3. Q: Can you give me a discount price?
A: It is depending on the volume. The larger the volume is, the more discount you can enjoy.
4.Q:How do you guarantee your quality ?
A: Our workers and technical employees are with many years experiences to ensure the products are good. After production finished,check will be made by quality inspector.
5. Q:How can you guarantee the quality of mass production is same with the sample sent to me before?
A: Our warehouse staff will leave another same sample in our company, with your company name marked on it, which our production will be based on.
