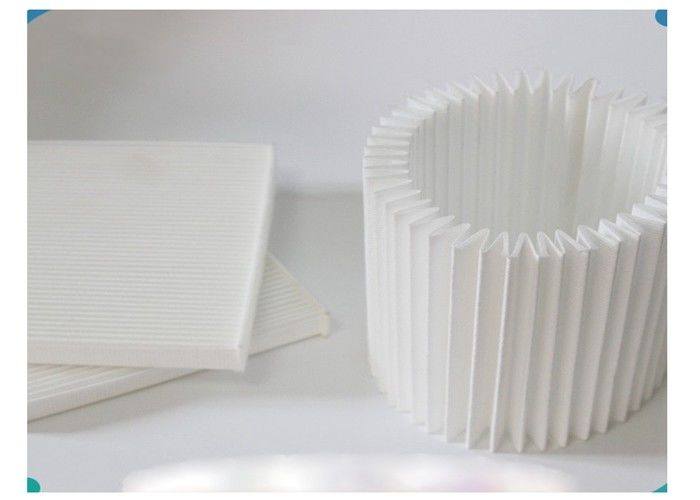

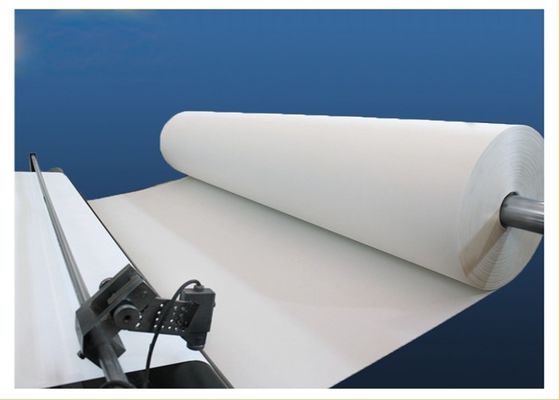

Low Air Pressure Hepa Filter Paper Roll PP Meltblown Material

Product Details:

Place of Origin:	An Ping China
Brand Name:	Chang Feng
Certification:	ISO9001
Model Number:	9009-55-2

Payment & Shipping Terms:

Minimum Order Quantity:	1000 Kilogram/Kilograms(Min. Order)
Price:	Negotiable
Packaging Details:	Vacuum Cleaner Cooking Oil The Truck Air Filter Paper 1,Inner Packing:Plastic Film 2,Middle Packing:Craft Paper 3,Outer Packing:Plastic Film 4,top and bottom Packing:Paper pallet 5,20ft can load 5.5-6 tons 6,40HQ can load 13.5-16 tons (110 g Hepa Roll Filt
Delivery Time:	1 - 5000 Est. Time15(days)
Payment Terms:	L/C, T/T
Supply Ability:	30 Ton/Tons per Quarter

Contact Now

Detailed Product Description

Product Name:	HEPA Filter Paper	After Warranty Service:	Online Support
Efficiency:	85%~99.99%	Brand Name:	CHANGFENG
Width:	Customized Size	Bursting Strength:	380 Kpa
Payment Trems:	T/T,L/C.,western Union	Place Of Origin:	Hebei, China
Thickness:	0.2-0.8	Certification:	ISO9001:2008
Material:	PP Meltblown + Polyester	Application:	Hotels, Garment Shops, Building Material Shops,Customized Size
High Light:	Low Air Pressure hepa paper sheets , hepa filter paper roll , PP Meltblown hepa filter paper roll

Resistance high quality PTFE HEPA filter paper

1. Product introduction

This polyester filter media with/without PTFE membrane is made of high quality filament yarn without using any binding agent. It has been widely applied in making pleated dust collection cartridges. This hard finished material is very stable & structurally durable. This unique & hard finished material provides features of good pleatability, high durable, and unique structure of very fine filament yarn which offer high performance in filtration. This filter media with PTFE membrane provides excellent stable structure, fine dust release & good release & good resistance of particle penetration in to the media. This spun bonded polyester filter media are pleated in different pleated depths & height to accommodated desired filtration area.

2. Parameter table

PP Meltblown

Part No.	Weight	Thickness	Efficiency	Resistance (Pa)	European Efficiency Class	Max. Width	Roll Length (m)
	(g/m2)	(mm)	(%)			(mm)
SMR85	20±2	0.21±0.03	≥85	≤7	H10	1500±5	500
SMR90	20±2	0.21±0.03	≥90	≤8	H10
SMR95	20±2	0.21±0.03	≥95	≤10	H11
SMR98	20±2	0.21±0.03	≥98	≤12	H11
SMR995	20±2	0.21±0.03	≥99.5	≤16	H12
SMR9997	30±2	0.33±0.03	≥99.97	≤25	H13
SMR9999	40±2	0.43±0.03	≥99.99	≤30	H14

PP Melt-blown + PET Composited Filter Paper

Part No.	Weight(g/m²)	Thickness(mm)	Efficiency(%)	Resistance (Pa)	European Efficiency Class	Max. Width(mm)	Roll Length (m)
MG-P85%	85±10	0.55±0.05	≥85	≤9	H10	1470±5	500
MG-P90%	85±10	0.55±0.05	≥90	≤10	H10
MG-P95%	85±10	0.55±0.05	≥95	≤12	H11
MG-P98%	85±10	0.55±0.05	≥98	≤14	H11
MG-P99.5%	85±10	0.55±0.05	≥99.5	≤18	H12
MG-P99.97%	95±10	0.65±0.05	≥99.97	≤27	H13
MG-P99.99%	105±10	0.75±0.05	≥99.99	≤32	H14

3. Production process

4. Packing details

Vacuum Cleaner Cooking Oil The Truck Air Filter Paper 1,Inner Packing:Plastic Film 2,Middle Packing:Craft Paper 3,Outer Packing:Plastic Film 4,top and bottom Packing:Paper pallet 5,20ft can load 5.5-6 tons 6,40HQ can load 13.5-16 tons (110 g Hepa Roll Filt
