H13 hepa Fabric By The Yard 3.0mNm Stiffness 380 Kpa Bursting

Product Details:

Place of Origin:	An Ping China
Brand Name:	Chang Feng
Certification:	ISO9001
Model Number:	9009-55-2

Payment & Shipping Terms:

Minimum Order Quantity:	1000 Kilogram/Kilograms(Min. Order)
Price:	Negotiable
Packaging Details:	Vacuum Cleaner Cooking Oil The Truck Air Filter Paper 1,Inner Packing:Plastic Film 2,Middle Packing:Craft Paper 3,Outer Packing:Plastic Film 4,top and bottom Packing:Paper pallet 5,20ft can load 5.5-6 tons 6,40HQ can load 13.5-16 tons (110 g Hepa Roll Filt
Delivery Time:	1 - 5000 Est. Time15(days)
Payment Terms:	L/C, T/T
Supply Ability:	30 Ton/Tons per Quarter

Contact Now

Detailed Product Description

Product Name:	HEPA Filter Paper	After Warranty Service:	Online Support
Showroom Location:	None	Brand Name:	CHANGFENG
Bursting Strength:	380 Kpa	Air Permeabiliry:	280-800L/m2.s
Resin Content::	27%	Stiffness:	3.0mNm
Material:	Glass Fiber, Glass Fiber	Application:	ASHRAE, HEPA, ULPA
Width:	Customers' Requirements	Payment Trems:	T/T,L/C.,western Union
High Light:	3.0mNm hepa paper roll , H13 hepa fabric by the yard , 380 Kpa hepa fabric by the yard

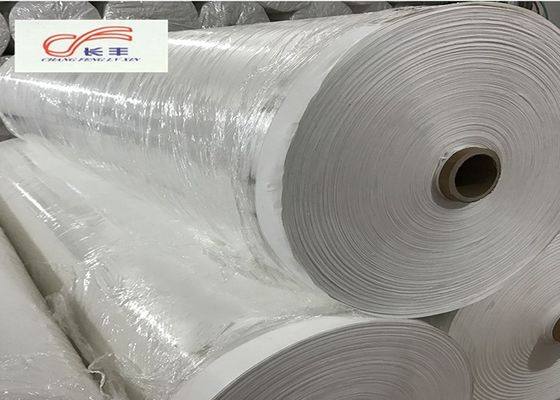

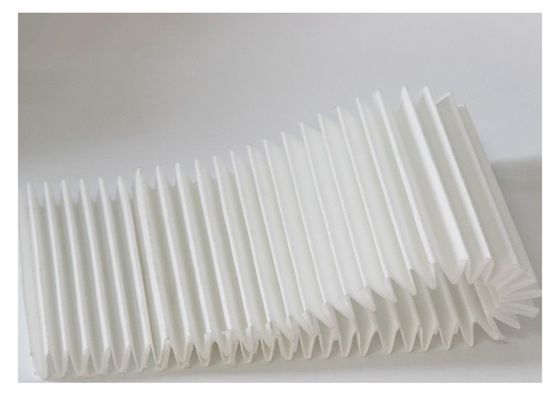

H13 Industrial Air Purification Mini-Pleat Hepa Filter Paper Rolls Hepa Material

1. Product introduction

composite glass fiber paper is made form superfine fiberglass as filtration layer, mainly used in hydraulic filter. It is laminated with synthetic fibers as protection layers on both sides or one side. It has advantage of high filtration effciency, high dust holding capacity, low pressure drop ,good mechanical strength, good pleating duiability and stable chemical properties.It is a new environmental friendly filter material.

2. Parameter table

No minal size	Actual size	Thickness	Protective net	Rated air volume	surface air speed	Rated initial resistance


(inch)	(mm)	(mm)		(m3h)	(mls)		(Pa)
WxHxD	W×H×D						H13	H14	u15	u16
2×2	570×570	50	Double-sided protective net	367	0.35		108	115	135	148

2×4	1170x570	50	Double-sided protective net	775	0.35		1o8	115	135	148

2×1	610×305	5o	Double-sided protective net	20o	0.35		108	115	135	148

	610×610	50	Double-sided protective net	423	0.35	1o8		115	135	148

2.5×2	762x610	5o	Double-sided protective net	535	0.35	108		115	135	148

3x2	915×610	50	Double-sided protective net	646	0.35	1o8		115	135	148

4×3	1170×870	50	Double-sided protective net	1206	0.35	108		115	135	148

4x4	1170×1170(with	5o	Double-sided protective net	1637	0.35	108		115	135	148
	ribs)
	570×570	70	Double-sided protective net	472	0.45	1oo		11o	125	140

4×2	1170×570	7o	Double-sided protective net	1oo0	0.45	1oo		11o	125	14o

2×1	610×305	7o	Double-sided protective net	258	0.45	1oo		11o	125	140

2×2	610×610	7o	Double-sided protective net	545	0.45	1oo		11o	125	14o

3. Service

1. Making the sample until you are satisfied with it.

2. Providing production schedule photos to ensure you know every process.

3. Offering professional one-on-one service and replying your E-mail within three hours

4. Shipment sample for checking before shipment.

5. Priority to get the our latest product information after our cooperation

4. Production process

This polyester filter media with/without PTFE membrane is made of high quality filament yarn without using any binding agent. It has been widely applied in making pleated dust collection cartridges. This hard finished material is very stable & structurally durable. This unique & hard finished material provides features of good pleatability, high durable, and unique structure of very fine filament yarn which offer high performance in filtration.
