Place of Origin: | An Ping China |
Brand Name: | Chang Feng |
Certification: | ISO9001 |
Model Number: | 9003-24 |
Minimum Order Quantity: | >=1 Sets |
---|---|
Price: | Negotiable |
Packaging Details: | standard wooden case packing |
Delivery Time: | Est. Time(days) 15 To be negotiated |
Payment Terms: | L/C, T/T |
Supply Ability: | 15 Set/Sets per Month |
Product Name: | 0il Filter Making Machine | Place Of Origin: | Hebei, China |
---|---|---|---|
MOQ: | 1 Set | Computerized: | YES |
Certification: | CE | Pleating Height: | 8-55 Mm |
Pleating Layer: | 1-5 | Voltage: | 380V |
Weight: | 800kg | Color: | Ral 7038 |
Type: | Paper Folding Machine | Dimension(L*W*H): | 1430*1550*1400 Mm |
Feature: | Low Cost,easy Operation | Function: | Oil Filter Media Pleating |
Keyword: | Knife Pleating Machine | After-sales Service Provided: | Free Spare Parts, Engineers Available To Service Machinery Overseas |
High Light: | 1100mm automotive oil filter manufacturers,9003-24 filter paper machine,Knife Pleating automotive oil filter manufacturers |

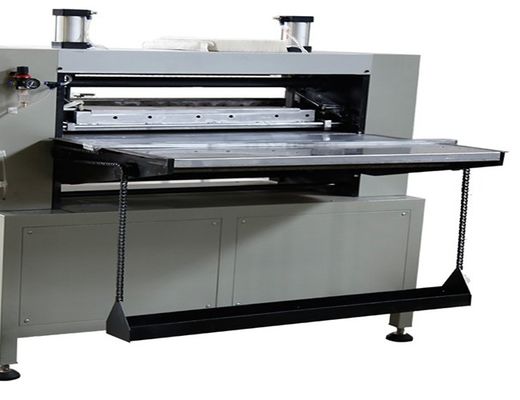

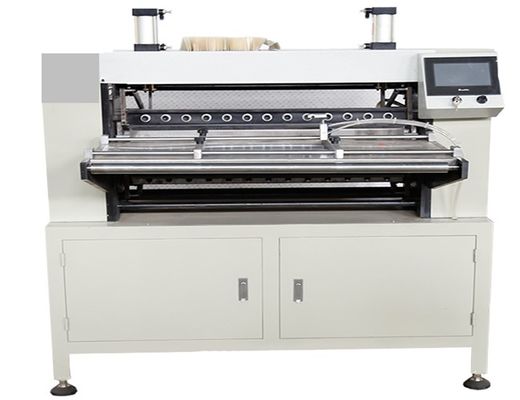

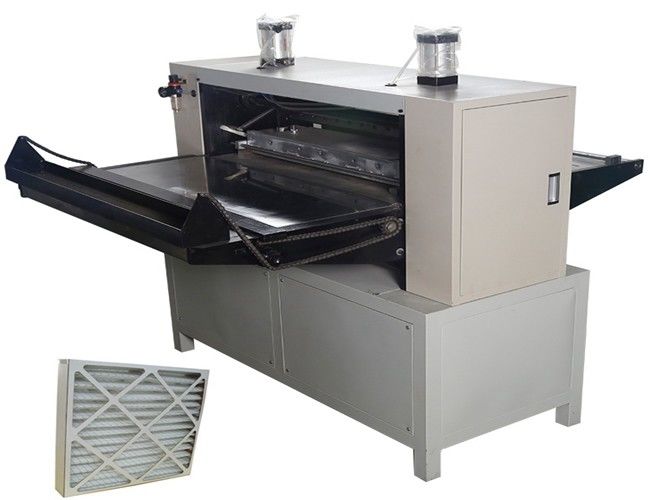

The hvac oil filter making machines are robust, compact and highly functional machines. They are capable of pleating multi-layered media i.e. fabric and wire mesh, multiple layers of filter papers etc. They are versatile and can pleat varieties of materials like:Paper,Cardboard,Synthetic Materials,Copper,Aluminum,Metallic Foils
Product name | knife ppleating machine by munualcontrol for oil filter pleating | |||||
Advantage | low cost,easy operation | |||||
Material | paper | |||||
Feature | oil filter media pleating | |||||
Application | Pleating oil filter media | |||||
Efficiency | 95%-99% | |||||
Certification | CE,ISO | |||||
(L*W*H) | 1430×1550×1400mm/ | |||||
Basic weight | 780kg | |||||
speed | 20-120pleats/min | |||||
Voltage | 380V | |||||
Warranty | 1Year | |||||
supply ability | 500 Set/Set per Year | |||||
Pleating height | 8 - 55mm | |||||
Layers pleated | 44201 | |||||
Pleating speed | 20 - 150 pleats/min | |||||
Max. pleating width | 1100mm | |||||
Thickness of material | 0.5 - 4mm | |||||
Speed adjustable motor | 1.5KW | |||||
Power | 1.5KW 380V Heater Power: 3KW Heat Temperature: 200°C | |||||
Machine weight | 800kgs | |||||
Machine dimension | 1430mm x 1550mm x 1400mm | |||||
Alternative width | B-600,B-800,B-1500,B-2100,B3000 mm | |||||
Alternative height | 15-160 mm |
Automatic reciprocating folding machine is suitable for folding various materials, including filter paper, non-woven fabric, non-woven felt, wave fiber material, composite material, PP / PET polyester material, metal material. The end face of the folding material is flat, and the folding height is automatically adjustable. The full-automatic reciprocating origami machine is composed of material frame, slitting part and folding fixed part. The machine can not only fold single-layer materials, but also fold multi-layer materials, with more than 7 layers. The whole machine is driven by 7 servo motors to realize full four axis control. The main advantage is that there is no need for the operator to adjust the folding height manually, and all parameters can be adjusted on the touch screen, which greatly reduces the adjustment time of the equipment required for replacing products, and makes the operation more convenient.
1. The folding work of the paper folding machine is completed by alternating the upper and lower knives. The knife distance can be adjusted automatically by computer to meet the requirements of different folding heights. The size is accurate and even.
2. The filter paper completes the work of automatic counting, folding and preheating on the origami machine.
The machine can also fold all irregular folding height changes.
The folding knife angle of this machine can be changed at will to ensure that no filter paper material will be damaged in folding.
The device is suitable for folding any filter paper material or multi-layer material.Applicable materials include filter paper, non-woven fabric, non-woven felt, wave fiber material, composite material, PP / PET polyester material, metal material.The production line is suitable for automobile three-way industry, hydraulic industry, purification industry and water treatment industry.
All parameters can be adjusted on the touch screen without manual adjustment by the operator, which greatly reduces the equipment adjustment time required for product replacement and makes the operation more convenient.
1. The folding work of the paper folding machine is completed by alternating the upper and lower knives. The knife distance can be adjusted automatically by computer to meet the requirements of different folding heights. The size is accurate and even.
2. The filter paper completes the work of automatic counting, folding and preheating on the origami machine.
3. The machine can also fold all irregular folding height changes.
4. The folding knife angle of this machine can be changed at will to ensure that no filter paper material will be damaged in folding.
1.We have stock for the parts 2.High quality, Reliable and Durable 3.Short Lead Time 4.100% test before selling 5.Best after-sale service6.We can supply the samples to customers and accept the trial order with small quantity.
Q: Are you the factory or trading company?
A: We are the first manufacturer of filter/application from 1990.
Q: What is your Minimum Order Quantity of your Product?
A: Normally the MOQ is 1 set;
Q: What's your payment term?
A: Usually, TT, Paypal, Alpay, Wei Xin, western union, can be selected according to your convenience
Q: What's your after-sales service?
A: Free online Technology Services 24h hours or engineers are available to serve machines overseas but travel cost will be born by your side;
Q: How Arrive to the factory?
A:If you fly, you can go to zhengding international airport. If you take the train, you can go to hengshui railway station. We will pick you up when you arrive.
The clapping origami production line of our company is suitable for corrugated forming of various filter materials in filter manufacturing industry. The height of corrugation can be adjusted continuously, which is especially suitable for the processing of various products.Features of the machine:Automatic reciprocating folding machine is suitable for folding various materials, including filter paper, non-woven fabric, non-woven felt, wave fiber material, composite material, PP / PET polyester material, metal material. The end face of the folding material is flat, and the folding height is automatically adjustable. The full-automatic reciprocating origami machine is composed of material frame, slitting part and folding fixed part. The machine can not only fold single-layer materials, but also fold multi-layer materials, with more than 7 layers. The whole machine is driven by 7 servo motors to realize full four axis control. The main advantage is that there is no need for the operator to adjust the folding height manually, and all parameters can be adjusted on the touch screen, which greatly reduces the adjustment time of the equipment required for replacing products, and makes the operation more convenient.
All parameters can be adjusted on the touch screen without manual adjustment by the operator, which greatly reduces the equipment adjustment time required for product replacement and makes the operation more convenient.
1. The folding work of the paper folding machine is completed by alternating the upper and lower knives. The knife distance can be adjusted automatically by computer to meet the requirements of different folding heights. The size is accurate and even.
2. The filter paper completes the work of automatic counting, folding and preheating on the origami machine.
3. The machine can also fold all irregular folding height changes.
4. The folding knife angle of this machine can be changed at will to ensure that no filter paper material will be damaged in folding.
Before starting up, please confirm whether the temperature reaches the height that can be turned on, otherwise the products produced will not meet the requirements
Hebei Anping Changfeng filter material Co., Ltd. is a solid factory for 25 years. Our company is a modern enterprise which produces and sells filter core raw materials, filter equipment and screen deep processing filter industry. After 25 years of efforts, it has gradually developed and expanded, with more than 300 engineers, technicians and workers. Our factory covers an area of 30 mu. 4 large workshops of 1000 square meters, two workshops of 500 square meters, with 30 press, 12 CNC punch machines, hydraulic press and lathe and other filter equipment welding machines.
The main products are: air filter equipment and all filter raw materials. Air filter, end cover, glue, filter paper, filter screen, rubber filter ring, rubber filter end cover mold, frame, filter equipment and other models are complete, high quality. The filter performance of automatic filter is high (good cleaning effect), automatic calorimeter (large capture quantity). It has long oscillation and high durability, which will not cause dust leakage. Water resistance, no blocking air entry, easy and light loading and unloading. In addition, there are screen deep processing filter products, oil and fuel engineering machine finished filter, petroleum ore screen pipe and other screen products. The company's products are sold to Russia, Britain, Africa, Australia and Southeast Asia and the Middle East and many other countries, well received by customers. Our company has a complete and scientific quality management system. The products are of good quality and various specifications. We uphold the business philosophy of "honesty, good quality, customer first", and in the spirit of mutual benefit, we are willing to establish good business relations with businesses all over the world. In the face of increasingly fierce market competition, the company carries out all staff training, cultivates talents, changes ideas, improves, strengthens cultivation, adjusts strategies, transforms local advantages into the core competitiveness of survival first and development later, so as to maintain a stable development momentum and meet challenges in the new century. Anping Changfeng filter material Co., Ltd. is recognized by customers for its integrity, strength and product quality. We should be responsible for every customer and every product.
Hebei Anping Changfeng Co., Ltd. is located in No.5 filter material city, Anping County, Hebei Province, which is "the hometown of China international silk screen". It is adjacent to Beijing, Tianjin, Shijiazhuang, Baoding, Hengshui and other large and medium-sized cities, with superior geographical location and developed transportation and logistics. It is 250 kilometers away from Beijing Capital Airport and 200 kilometers away from Tianjin port. Welcome friends from all over the world to visit, guide and business negotiation. We will serve you wholeheartedly.
