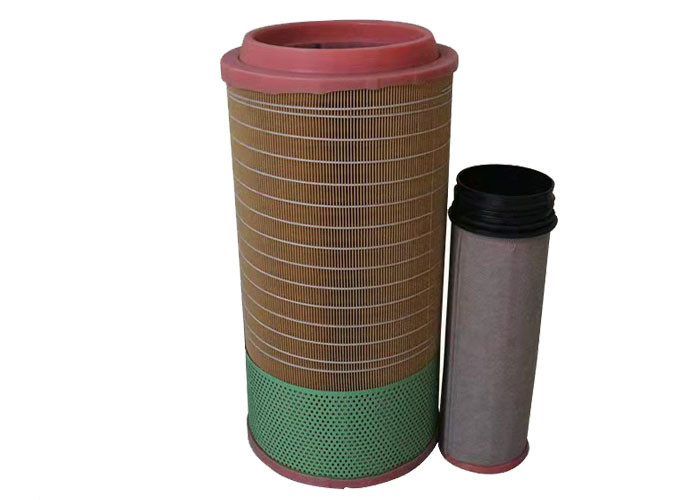

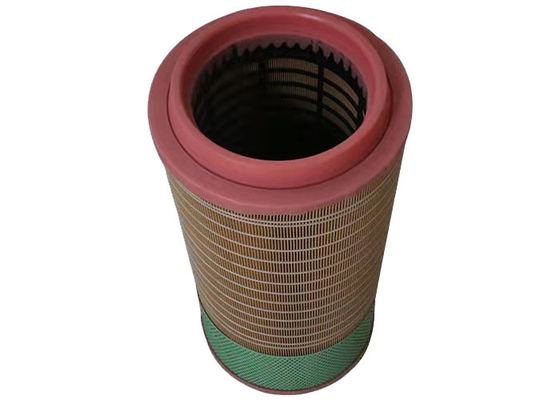

Composite Paper 2um Pu Air Filter Element ISO9001

Composite Paper 2um Pu Air Filter Element ISO9001

  • Composite Paper 2um Pu Air Filter Element ISO9001
  • Composite Paper 2um Pu Air Filter Element ISO9001
Composite Paper 2um Pu Air Filter Element ISO9001
Product Details:
Place of Origin: An Ping China
Brand Name: Chang Feng
Certification: ISO9001
Model Number: 9009-9-6
Payment & Shipping Terms:
Minimum Order Quantity: 300 Piece/Pieces(Min. Order)
Price: Negotiable
Packaging Details: carton box
Delivery Time: 8-10 work days
Payment Terms: L/C, T/T
Supply Ability: 500 Piece/Pieces per Month
Contact Now
Detailed Product Description
Product Name: PU Air Filter Access Caliber: 2um
Brand Name: Chang Feng Weight: 8kg
Filtration Grade: Hepa Filter Efficiency: 99.99%, 99.95%
Warranty: 6 Months, 1 Year Package: Neutral Packing
Dimension(L*W*H): Customized Size Filter Element Form: Folding Filter Element
Texture Of Material: PU Composite Filter Paper Supply Ability: 5000 Set/Sets Per Quarter
Media Material: 20%polyester Filter Paper Certification: ISO9001:2008, ISO9001 2008
High Light:

iso pu air filter


2um pu air filter


composite paper air filter element

Manufacturer'S Direct Composite Filter Paper Pu Air Filter Element


1. Product introduction


Pu Air filter element is also called air filter cartridge, air filter, style and so on. Mainly used for air filtration in engineering locomotives, automobiles, agricultural locomotives, laboratories, aseptic operation rooms and various precision operation rooms.

1. Basic medium: polyester 20% cellulose 80%
2. Work efficiency: 99.9% on 1 micron
3. Washable: multiple times
4. Maximum working temperature: 200oF/93oC
5. Wear resistance: excellent
6. Chemical resistance: excellent
7. Optional flame-retardant medium (FR): order required


2. Parameter table


Model O.D I.D Length Filtration surface(m2)
LM3266 Φ324mm Φ213mm 660mm 21m2
LM3566 Φ352mm Φ241mm 660mm 23m2
LM3275 Φ324mm Φ213mm 750mm 26m2
LM3288 Φ324mm Φ213mm 880mm 27m2
LM3290 Φ324mm Φ213mm 915mm 28m2


3. Product characteristics


  Conducive to ultra-low temperature, high temperature, and high pressure; Good porosity; Less pressure loss; Higher machinability; Sterilization filtration for air purification and water treatment; Used in high temperature and high viscosity fluids; Display the lowest pressure difference; It can be used again after backwashing and washing.


4. Technology


The car engine needs to suck in a lot of air during the working process. If the air is not filtered, the dust suspended in the air is sucked into the cylinder, which will accelerate the wear of the piston assembly and the cylinder. Larger particles entering between the piston and the cylinder will cause serious "cylinder pull" phenomenon, which is especially serious in a dry and sandy working environment.

The air filter is installed in front of the carburetor or the air intake pipe to filter out dust and sand particles in the air and ensure that sufficient and clean air enters the cylinder. Air filter element is also called air filter cartridge, air filter, dust filter, style, etc. Mainly used for air filtration of engineering locomotives and automobiles. However, the existing air filter element only has the function of filtering air. When the car engine runs in humid air or water enters, it does not have the water barrier function. Once the paper air filter element is damp and immersed in liquids such as oil or water during use, The resistance of the filter element will increase sharply, resulting in deformation or even damage, which will affect the efficiency of the engine, and may easily cause engine failure in severe cases.In view of this, this utility model is hereby proposed.


5. Product principle


The automobile air filter element includes a frame, a filter layer, a waterproof and breathable layer, and a filter element box. The filter layer and the waterproof and breathable layer are arranged in the filter element box from top to bottom; the filter layer is a multi-layer folded structure and passes through The frame is fixed; the top surface of the waterproof and breathable layer is connected with the filter layer, and the bottom surface is connected with the filter box.


6. Product use


In the light textile industry, plastic injection molding machines, rubber vulcanizing machines, paper machines, printing machines and textile machines adopt hydraulic technology.

In the metallurgical industry, hydraulic technology is used in electric furnace control systems, steel rolling mill control systems, open hearth furnace charging, converter control, blast furnace control, strip deviation and constant tension devices.


7. Product advantage


The automobile air filter element provided by the present utility model is improved on the basis of the existing automobile air filter element, and waterproof and breathable can be directly arranged between the filter element box and the filter layer to prevent water from entering the paper air filter element and avoid the filter element After being damp, the resistance increases and deforms and damages, which improves the service life of the filter element, prevents water from entering the air inlet, and avoids engine cylinder rubbing, thereby improving the safe use of the engine.


8. Service


Always in stock

Fast delivery

Small order allowed

100% New


9. FAQ


1.What is the MOQ?

Each Item has a minimum order quantity,which would be stated in our photo quotation sheet.We can resolve it according to negotiation.

2.What kinds of your package?

According to customers' requirement.

3.Could I get some samples?How could I pay them?

We are glad to offer you samples.You can pay them by T/T or Western Union.

4.How long is your delivery time?

If there is stock,the delivery time is arround 1 week after we get payment.If need to be produced,need 1-2weeks after we get the deposit.

5.Could you calculate the shipping cost for me?

Yes,we are honored to do that for you!Before the freight,please let us know which seaport or airport near your place.

Our Services
1. Your inquiry will be replied in 24 hours.
2.production Preparation Time: 5-25 days after receiving your subscription.
3. We have our own factory, We can provide all kinds of the auto filte and filter material, also according to your special
