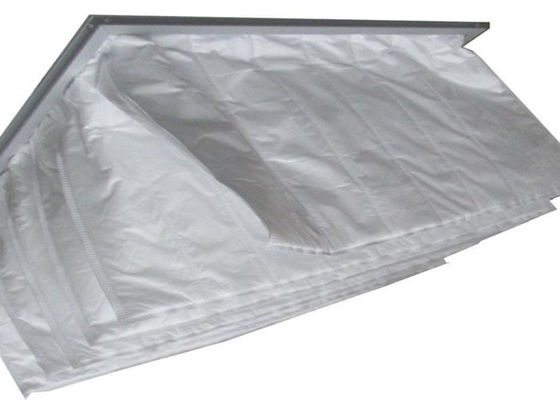

F5 F6 F7 F8 F9 Air Purifying Bag 0.3 Micron Porosity Superfine Fibre

Product Details:

Place of Origin:	An Ping China
Brand Name:	Chang Feng
Certification:	ISO9001
Model Number:	9009-54-6

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	carton Negotiable
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T
Supply Ability:	2000 Set/Sets per Day

Contact Now

Detailed Product Description

Product Name:	Air Filter Element	Porosity:	0.3 Micron
Material:	Superfine Fibre	Efficiency:	F5,F6,F7,F8,F9
Filter Pockets Quantities:	3/5/6/8pieces Of Pockets	Certificate:	ISO14000,ISO9001:2008
Color:	Orange/Green/Pink/Yellow/White Pockets	Frame Material:	Galvanized Steel/Aluminum / Stainless Steel
Pocket Filter Efficiency:	40-45%, 60-65%, 80-85%, Or 90-95% Are Available	Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
High Light:	0.3 Micronair filter bag , F5 Filter air purifying bag , F9 air purifying bag

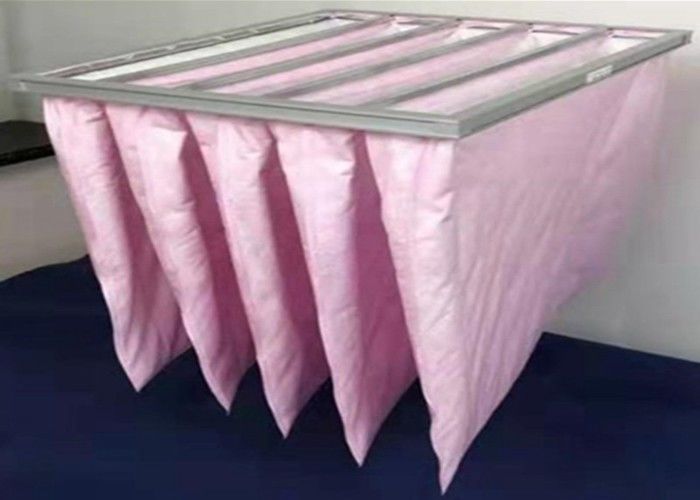

F5,F6,F7,F8,F9 Aluminum Alloy Frame For Ventilation System F5-F9 Pocket Dust Collector Three Filter Bags-Six Filter Bags

1.Features:

1.Low initial resistance and high air flow volume

2.Large dust collection

3.Safe material, non-toxic and odorless

2.Product characteristics

1.It is woven specially with the superfine fibre,filter material content static electricity fibre.
2.Dust size: 1 or is smaller than 1micron)
3.High permeability
4.Long working life.
5.The large dust holding capacity, the high efficiency, the low damaged due to pressing;
6.Temperature resistance up to 80℃

The galvanization frame (the outer edge thickness: 20mm and 25mm are all available)
The aluminum alloy frame (the outer edge thickness: 20mm and 25mm are all available

3.Features

1. Adhesive---Exclusively developed, firmly bonded, does not fall off
2. Filter---high quality wood pulp paper with high filtration efficiency, large dust content and high wetness
3. High quality foam collagen material with excellent ductility and better sealing
4. High quality anti-fingerprint cap, not easy to rust
5. Guarantee 100% product quality testing qualified

General application

1. Pre filtration of high efficiency filter

2. Intermediate filtration of air conditioning system

3. Air purification and filtration in electronics, precision instruments, machinery, metallurgy, chemical industry, textile, medicine, food and other industries.

4.Parameter table

Pocket Air Filter Media
Type	Grade	Efficiency	Resistance	Thickness	Weight	Material	Color
(%)	(Pa)	(mm)	(g/m2)
MG-F5	F5	≥50	≤9	1.1-1.2	95-110	Synthetic fiber composited	White
MG-F6	F6	≥70	≤13	1.15-1.25	100-115	Light green
MG-F7	F7	≥85	≤19	1.55-1.65	130-145	Light pink
MG-F8	F8	≥95	≤23	2.1-2.2	160-175	Light yellow
MG-F9	F9	≥98	≤33	2.1-2.2	170-185	Dark yellow
