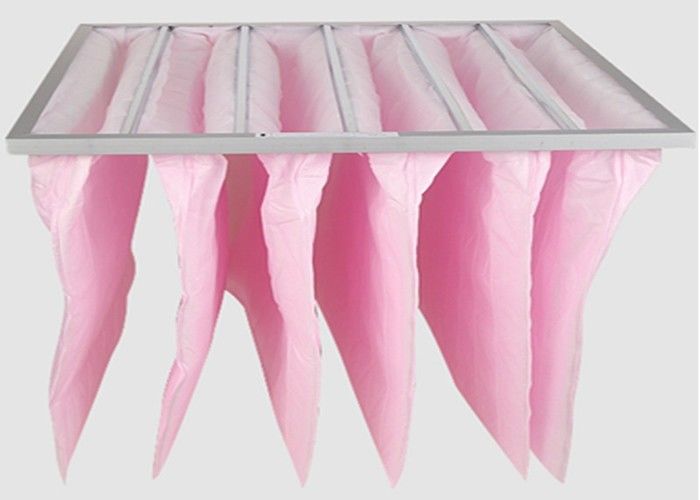

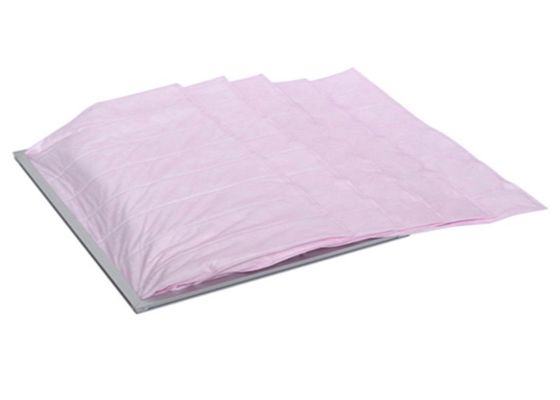

F5 F6 F7 Second-Generation Dust Collection Filter Bag, 70%-95% Efficiency, Glass Fiber Air Filter Synthetic Bag
1.The Product introduction
1. Large dust holding capacity.
2.It is woven specially with the supplier fiber.
3.The material is content static electricity fiber.
4.All filter mats are manfactured using an eco-friendly recipe.
2.Product characteristics
1.It is woven specially with the superfine fibre,filter material content static electricity fibre.
2.Dust size: 1 or is smaller than 1micron)
3.High permeability
4.Long working life.
5.The large dust holding capacity, the high efficiency, the low damaged due to pressing;
6.Temperature resistance up to 80℃
The galvanization frame (the outer edge thickness: 20mm and 25mm are all available)
The aluminum alloy frame (the outer edge thickness: 20mm and 25mm are all available
3.Features
1. Adhesive---Exclusively developed, firmly bonded, does not fall off
2. Filter---high quality wood pulp paper with high filtration efficiency, large dust content and high wetness
3. High quality foam collagen material with excellent ductility and better sealing
4. High quality anti-fingerprint cap, not easy to rust
5. Guarantee 100% product quality testing qualified
General application
1. Pre filtration of high efficiency filter
2. Intermediate filtration of air conditioning system
3. Air purification and filtration in electronics, precision instruments, machinery, metallurgy, chemical industry, textile, medicine, food and other industries.
4.Parameter table
| Type |
Size
(mm)
|
pockets |
Filter area |
Rated Airflow
(m³/h)
|
Initial Pressure Drop
(Pa)
|
|
F5
|
287*592*600 |
3 |
2.3 |
2100 |
55 |
| 490*592*600 |
5 |
3.8 |
3650 |
| 592*592*600 |
6 |
4.5 |
4250 |
|
F6
|
287x592x600 |
3 |
2.3 |
2100 |
60
|
| 490x592x600 |
5 |
3.8 |
3650 |
| 592x592x600 |
6 |
4.5 |
4250 |
|
F7
|
287x592x600 |
3 |
2.3 |
2100 |
80
|
| 490x592x600 |
5 |
3.8 |
3650 |
| 592x592x600 |
6 |
4.5 |
4250 |
5.FAQ
Q: Do you provide free sample?
A: Yes, free sample can be sent at freight cost collected.
Q:Are you really manufacturer or trading company?
A:We are filter material manufacturer over 25 years experiences.
Q:Where is the air filter generally use for?
A:HAVC(Heating,air conditioning and ventilation system)Spray painting stop,chemical
plant,pharmaceutical plant,cement or asphalt powder plant,clean room,power station,heavy and metal industry,Gas turbo and Co-generation utility plants, Engineering and devices plants, dry and bake room, Hospital,etc.
Q:What's your testing standard?
A: EN779:2012, ISO9001
Q: What’s you sample policy?
A: Our sample fee is refundable,which means we will return it in you bulk order
Q: Can I get a sample before bulk order?
A: Yes, In order to text the quality, you can get a sample before bulk order. We are very confident about the quality .
And the sample time is 7-10 days.But Sample cost is 10-50 Dollars and can be refunded .
Q: What are your manufacturing and shipping time ?
A: About 25-35 days after confirm the details .
