bag filter Air Compressor Intake Filter Element 20% Polyester Anti Fingerprint

bag filter Air Compressor Intake Filter Element 20% Polyester Anti Fingerprint

  • bag filter Air Compressor Intake Filter Element 20% Polyester Anti Fingerprint
  • bag filter Air Compressor Intake Filter Element 20% Polyester Anti Fingerprint
bag filter Air Compressor Intake Filter Element 20% Polyester Anti Fingerprint
Product Details:
Place of Origin: An Ping China
Brand Name: Chang Feng
Certification: ISO9001
Model Number: 9009-54-6
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: carton Negotiable
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 2000 Set/Sets per Day
Contact Now
Detailed Product Description
Product Name: Air Filter Element Core Components: Cap/Filter Media
Efficiency: 99.95%.99.5% Porosity:
Brand Name: Chang Feng Certification: ISO9001:2008
Filter Media: Synthetic Paper Life: 1~2Years
MOQ: 500 Pcs Sample: Provied
High Light:

Bag Filter air compressor intake filter element

,

ISO9001 air compressor intake filter element

,

20% Polyester air bag filter

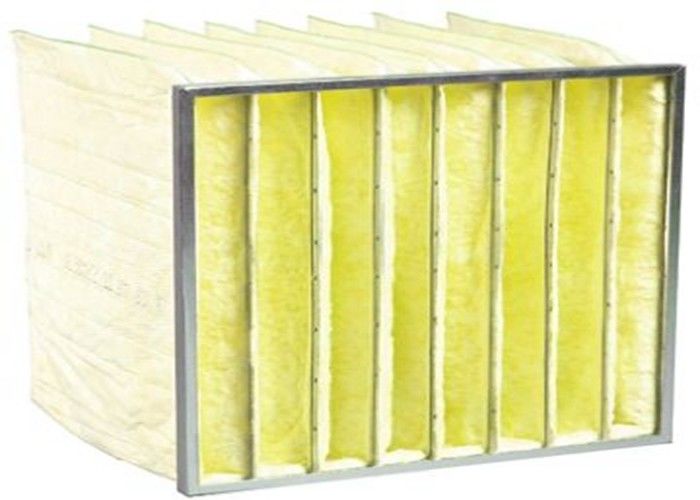

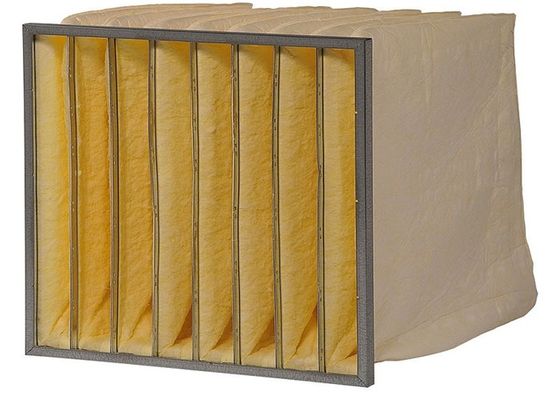

Glass Fiber Dust Removal Frame Bag Type Dust Collection And Purification System



1.The Product introduction

Efficiency: F5 / F6 / F7 / F8

Media: Glass fiber

Pocket type: Sewing bag

Optional thickness: Aluminum / GI: 21, 25, 46 Plastic: 25

Optional thickness: 21 / 25mm

Max Temperature: 50℃

Max Humidity: 100%





2.Product characteristics



(1) Imported cellulose fiber or synthetic fiber for base

media (80%cellulose and 20%polyester).

(2) Excellent filter efficiency.

(3) Wide pleat spacing, great filter surface.

(4) Electrochemical plate top and bottom, no rust.

(5) Perforated zinc galvanized metal inner core, allows good airflow.

(6) Specialty chlorine rubber gasket to ensure airtight sealing.

(7) Applicable temperature: 65°C.



3.Features



1. Adhesive---Exclusively developed, firmly bonded, does not fall off
2. Filter---high quality wood pulp paper with high filtration efficiency, large dust content and high wetness
3. High quality foam collagen material with excellent ductility and better sealing
4. High quality anti-fingerprint cap, not easy to rust
5. Guarantee 100% product quality testing qualified





4.Parameter table



Model NO. Actual Size
HxWxD (mm)

Air Flow

(m³/h)

Media Area
Flow (m²)

Velocity

(m/s)

Efficiency Pocket.
Numbers
KP9-001 287*592*381 750 1.6 1.23 F5-F8 3
KP9-003 287*592*600 1200 2.5 1.96 F5-F8 3
KP9-005 490*592*500 1900 4.1 1.82 F5-F8 6
KP9-007 592*592*381 1500 3.2 1.19 F5-F8 6
KP9-008 592*592*381 1900 4.1 1.51 F5-F8 8
KP9-009 592*592*381 2400 5.0 1.90 F5-F8 10
KP9-011 592*592*500 250 5.4 1.98 F5-F8 8
KP9-013 592*592*600 2300 5.0 1.82 F5-F8 6
KP9-014 592*592*600 2950 6.4 2.34 F5-F8 8
KP9-015 592*592*600 3600 7.9 2.85 F5-F8 10





5.FAQ



1.Certificates:

RoHs,UL,SGS,MSDS,DIN53438

2.Payment terms:

50% deposit upon getting the order,balance against the B/L copy.

3.Delivery date:

About 7 working days(≤500pcs), special order is negotiable to be quicker.

4.Sample Terms:

We can supply 1-2 small samples for tree but express cost is covered by your side.

5.Minimum Order Quantity:

No strict principle for standard sizes,but 50pcs for non-standard dimensions or types.

6.Price Terms:

EX-WORKS, FOB, CNF, CIF OR DDU is available and up to you.

7.Lead time:

3 Days for a 40ft container, weeks for two 40ft container.
