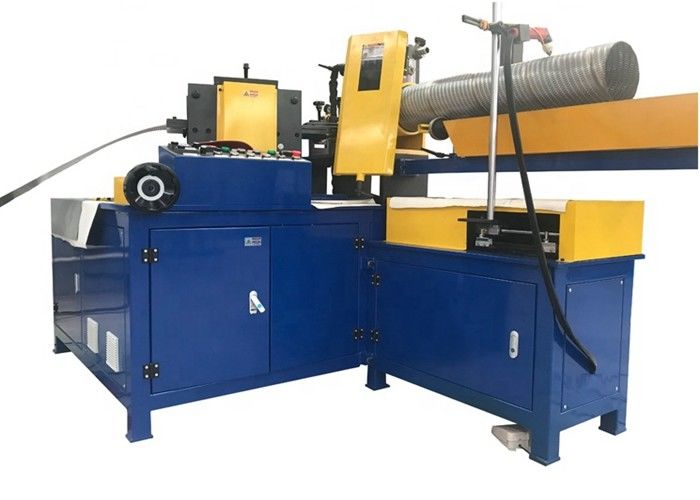

TIG welding Argon Arc Welder , 380V ss pipe welding machine 4m/min

Product Details:

Place of Origin:	An Ping China
Brand Name:	Chang Feng
Certification:	ISO9001
Model Number:	9009-54-80

Payment & Shipping Terms:

Minimum Order Quantity:	>=1 Sets
Price:	Negotiable
Packaging Details:	wooden box packing Customized by customer requires
Delivery Time:	30 work days
Payment Terms:	L/C, T/T
Supply Ability:	200 Set/Sets per Year

Contact Now

Detailed Product Description

Product Name:	Filter Welding Machine	Suitable Raw Material:	Carbon Steel, Stainless Steel
Dimensions:	1500 X 1200 X 1400mm	Applicable Industries:	Manufacturing Plant
Core Components:	PLC, TIG Welding	Welding Method:	TIG Welding
Voltage:	380V	Production Speed:	0~4m/min
Raw Material Thickness:	0.9-2.5mm	Filter Core Tube Diameter:	14-170mm
Warranty:	1 Year	Material Thickness:	0.8-2.38mm
High Light:	4m/min ss pipe welding machine , 380V ss pipe welding machine , TIG Argon Arc Welder

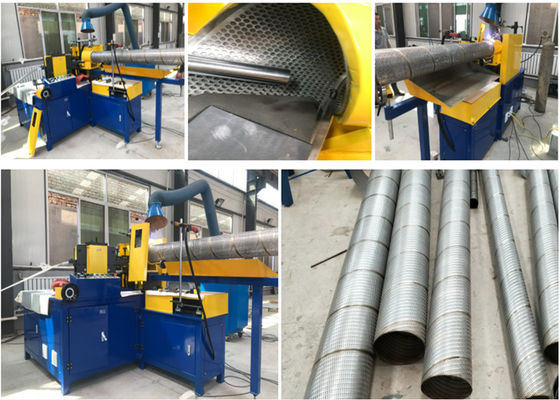

Stainless Steel Argon Arc Welding Spiral Pipe Welder With A Maximum Diameter Of 170mm

1. Product introduction

For petroleum and chemical sand control filtration, spiral welded screen tubes will be used mostly. And normally there are two kind of screen tubes for sand control filtration purpose: slotted type and perforate type.

2. Parameter table

No.	ltem	Technical data
1	Suitable raw material	arbon steel, stainless steel
2	Raw material thickness	0.8-3.0mm
3	Filter screen tube diameter	60-300mm
4	Material strip width	100-300mm
5	Main driving motor power	2.2kW
6	Welding method	TlG
7	cutting method	lasma non-stop cutting
8	roduction speed	0-15m/min
9	Main machine dimension	1500 x 1300 x 1400mm
10	Weight	bout 1000kg
11	Item	Technical data
12	Suitable raw material	Carbon steel, stainless steel
13	Raw material thickness	0.8-3.0mm
14	Filter screen tube diameter	60-300mm
15	Material strip width	100-300mm
16	Main driving motor power	2.2kW
17	Welding method	TIG
18	Cutting method	Plasma non-stop cutting
19	Production speed	0-15m/min
20	Main machine dimension	1500 x 1300 x 1400mm
21	Weight	About 1000kg

3. Product characteristics

The main specifications of punching net are rectangular hole, square hole, diamond hole, round hole, oblong hole, hexagonal hole, cross hole, triangle hole, long waist hole, plum hole, fish scale hole, pattern hole, bazi net, herringbone Holes, pentagonal star holes, irregular holes, bulging holes, shaped holes, louver holes, etc.

4. Product advantage

1. Punching online, high speed
2. High precision TIG welding method
3. Non-stop plasma cutting
4. Fast molds changing
5. High automation, easy to operate
