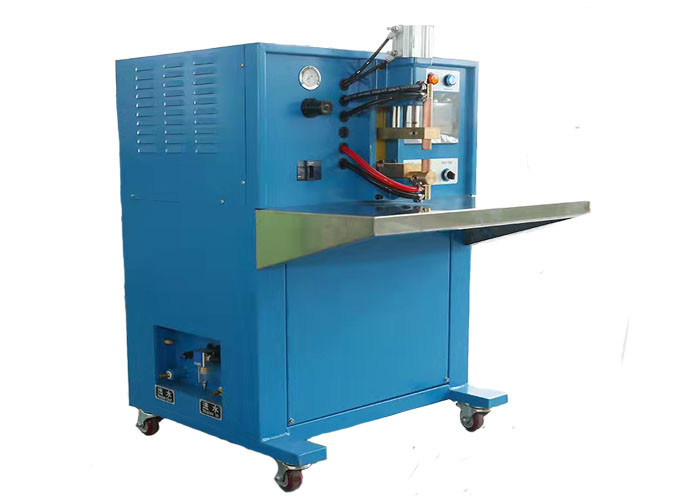

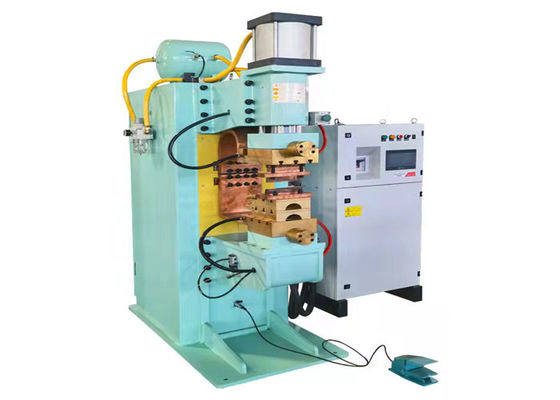

Stainless Steel Automatic DC Spot Welding Machine Air Filter Manufacturing Machine
1. Product introduction
Spot welding machine is divided into universal type (universal type) and special type according to its purpose; single-point type, double-point type and multi-point type according to the number of spot welding points at the same time; single-point type, double-point type and multi-point type according to the electric conduction type, single-side type and double-side type according to the driving mode of pressure mechanism, there are pedal type, motor-cam type, pneumatic type, hydraulic type, compound type (pneumatic-hydraulic type) ; according to the operation characteristics, there are non-automatic, automatic; according to the installation method, there are fixed type, mobile type or portable type (hanging type) ; According to the moving direction of the active electrode (usually the upper electrode) , there are vertical stroke (the electrode moves in a straight line) and circular arc stroke, there are power frequency welder (using 50 HZ AC power) , pulse welder (DC pulse welder, stored energy welder, etc.) , frequency welder (such as low frequency welder) .
2. Parameter table
| ZZHG 4A-6 Rotary pleating machine 650 |
ZZHG 4A-9 Rotary pleating machine 780 |
| Pleating height |
20-75mm |
20-75mm |
| Max.pleating width |
600mm |
750mm |
| Speed |
5-70m/min |
5-70m/min |
| Motor |
13kw |
14kw |
| Air pressure |
0.5Mpa |
0.5Mpa |
| Weight |
780KG |
900KG |
| This machine contains constant powder brake, heating, humidification, indentation, slitting, counting, folding, heating and shaping |
3. Product application
Screen industry: gantry screen welder, full brake gantry reciprocating welder, semi-automatic gantry welder, medium frequency inverter welder, etc. are recommended; Fence industry: multi spot welding, row welding machine, lap butt welding machine and touch welding machine are recommended.Shelf display industry: In our common supermarket shelves, spot welding machines are actually used when producing shelves. The shelf reinforcement multi-spot welding machines made by welding equipment have very good quality and welding efficiency, and are supplied to many large manufacturers. Medium-sized shelf manufacturer.
4. Product advantages
Using precision inverter DC welding power source, the response speed is fast. The load voltage is induced, and the constant current is controlled in a feedback manner, the control accuracy is significantly improved, and high-quality welding is achieved.
Using precision inverter welding power source, the process advantage is obvious. The welding current is pulsating DC, and there is no AC zero-crossing and no heating of the workpiece, which improves the welding process performance. The welding current required for the same welding object is reduced, the electrode heating is small, and the service life is long.
The power-on method of PRE HEAT and MAIN HEAT is preheated and then welded to ensure stable welding quality. Maintain the continuity of energy density, shorten the welding time, and reduce the deformation and discoloration of the base metal. (Welding time is controlled in microseconds, continuous output).
