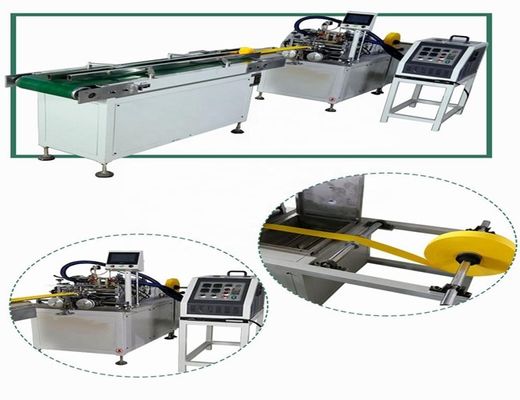

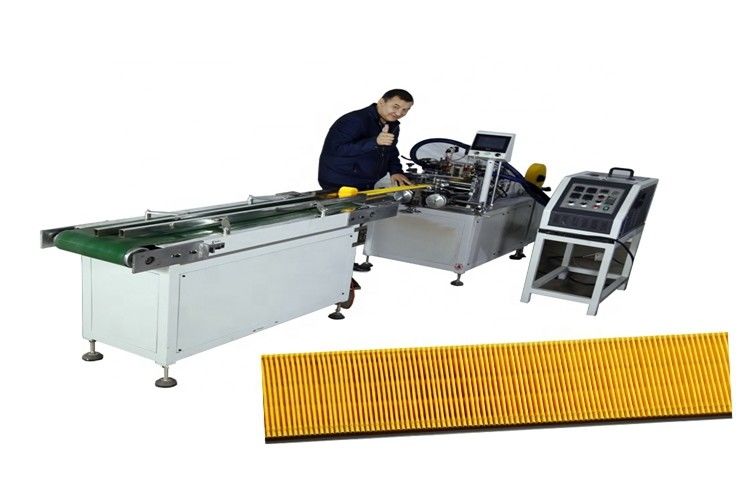

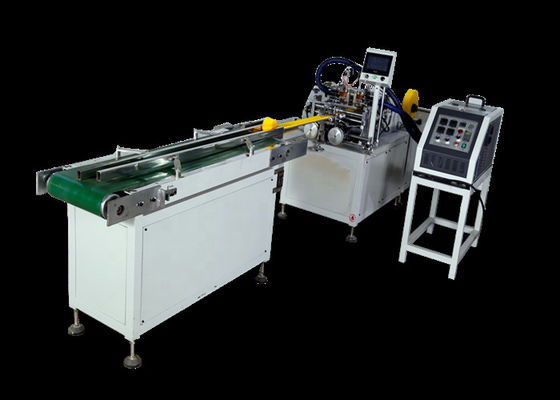

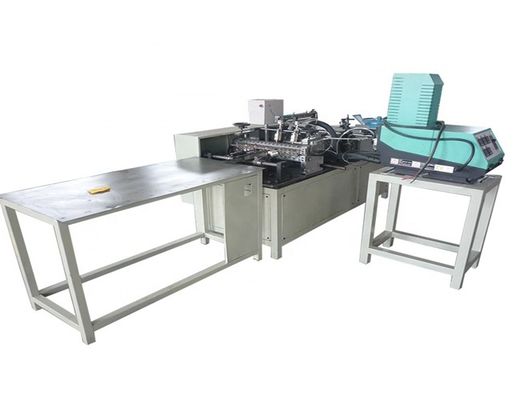

5-65m/Min Air Filter Making Machine , 50HZ Rotary Pleating Machine

5-65m/Min Auto Paper Air Rotary Pleating Machine

1. Product introduction

With the country's increasing efforts to adjust the industrial structure and environmental governance of related industries, as well as the continuous introduction of my country's environmental protection and governance policies and the continuous improvement of standards, domestic industrial enterprises have increasingly strong demand for air filter elements. The air filter element is generally composed of an end cover, a skeleton, an outer shield, and a filter cake. The end cover, skeleton and outer shield are produced through mechanical processing during the production process. The filter cake is formed by pleating the filter paper, and the processed end cover , Skeleton, outer shield and filter cake are bonded and formed in the evolution workshop.

2. Parameter table

3.Product characteristics

The equipment is suitable for products with requirements of automotive gasoline and diesel filtering and pleating process3.

4. Technology

1. The folding machine adopts the alternate method of upper and lower knives to complete the folding work. The knife distance is automatically adjusted by the computer, which can meet the requirements of various folding heights, and the size is accurate and flat.

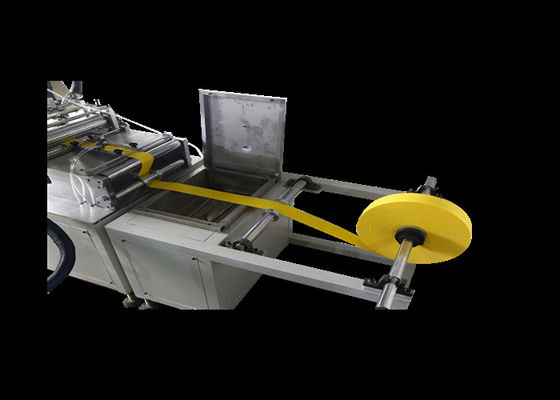

2. The filter paper completes automatic dot counting, folding processing and preheating and shaping on the folding machine.
3. The machine can also fold all irregular fold height changes.
4. The angle of the folding knife of this machine can be changed arbitrarily to ensure that no filter paper material is damaged during folding.

5. Product use

Oil And Panel Air Filter Paper Pleating

6. Product use

This set of production line is suitable for automobile three-way industry,

7. Product advantage

Free online Technology Services 24h hours or engineers are available to serve machines overseas but travel cost will be born by your side;

9. FAQ

Q: Are you the factory or trading company?
A: We are the first manufacturer of filter/application from 1990.

Q: What is your Minimum Order Quantity of your Product?
A: Normally the MOQ is 1 set;

Q: What's your payment term?
A: Usually, TT, Paypal, Alpay, Wei Xin, western union, can be selected according to your convenience

Q: What's your after-sales service?
A: Free online Technology Services 24h hours or engineers are available to serve machines overseas but travel cost will be born by your side;

Q: How Arrive to the factory?
A:If you fly, you can go to zhengding international airport. If you take the train, you can go to hengshui railway station. We will pick you up when you arrive.

10. Production process

1. The maximum width of the product: 50-320mm
2. Adjustable range of folding height: 12-75mm (within this range, you can choose 6 specifications)
3. Production speed:5-65m/min
4. Interval between rubber strips: 25.4mm
5. Number of rubber strips: 2×26 strips
6. Power supply voltage: 380V/50HZ
7. Total power of the machine: 16kw
8. Working pressure: 0.6MPa

11. Method of operation

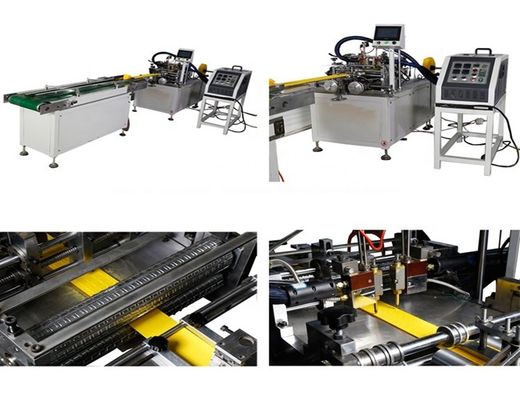

1. The filter material is glued and folded on the same machine. After the filter paper is formed, it is transported by a longer conveyor belt so that the hot melt adhesive can be cured and cut to the required length.
2. Both the host and the conveyor are controlled by the frequency converter, which is easy to adjust.
3. The travel distance of the filter material after gluing can be adjusted within a certain range, which is conducive to the dry humidity of the hot melt adhesive, so that it can be folded firmly.
4. Six sets of rollers are on the same disk, which is easy to replace and adapt to the production of different specifications.
5. The glue melting speed is fast, and the amount of glue can be adjusted through the frequency converter.
6. This machine has high production efficiency and good product flatness.
The company can also customize origami production lines of different specifications according to your needs.

12. Do’s and don’ts

Please do not run the machine without raw materials, otherwise the loss will be great

13. Company introduction

Hebei Anping Changfeng filter material Co., Ltd. is a solid factory for 25 years. Our company is a modern enterprise which produces and sells filter core raw materials, filter equipment and screen deep processing filter industry. After 25 years of efforts, it has gradually developed and expanded, with more than 300 engineers, technicians and workers. Our factory covers an area of 30 mu. 4 large workshops of 1000 square meters, two workshops of 500 square meters, with 30 press, 12 CNC punch machines, hydraulic press and lathe and other filter equipment welding machines.
The main products are: air filter equipment and all filter raw materials. Air filter, end cover, glue, filter paper, filter screen, rubber filter ring, rubber filter end cover mold, frame, filter equipment and other models are complete, high quality. The filter performance of automatic filter is high (good cleaning effect), automatic calorimeter (large capture quantity). It has long oscillation and high durability, which will not cause dust leakage. Water resistance, no blocking air entry, easy and light loading and unloading. In addition, there are screen deep processing filter products, oil and fuel engineering machine finished filter, petroleum ore screen pipe and other screen products. The company's products are sold to Russia, Britain, Africa, Australia and Southeast Asia and the Middle East and many other countries, well received by customers. Our company has a complete and scientific quality management system. The products are of good quality and various specifications. We uphold the business philosophy of "honesty, good quality, customer first", and in the spirit of mutual benefit, we are willing to establish good business relations with businesses all over the world. In the face of increasingly fierce market competition, the company carries out all staff training, cultivates talents, changes ideas, improves, strengthens cultivation, adjusts strategies, transforms local advantages into the core competitiveness of survival first and development later, so as to maintain a stable development momentum and meet challenges in the new century. Anping Changfeng filter material Co., Ltd. is recognized by customers for its integrity, strength and product quality. We should be responsible for every customer and every product.
Hebei Anping Changfeng Co., Ltd. is located in No.5 filter material city, Anping County, Hebei Province, which is "the hometown of China international silk screen". It is adjacent to Beijing, Tianjin, Shijiazhuang, Baoding, Hengshui and other large and medium-sized cities, with superior geographical location and developed transportation and logistics. It is 250 kilometers away from Beijing Capital Airport and 200 kilometers away from Tianjin port. Welcome friends from all over the world to visit, guide and business negotiation. We will serve you wholeheartedly.
