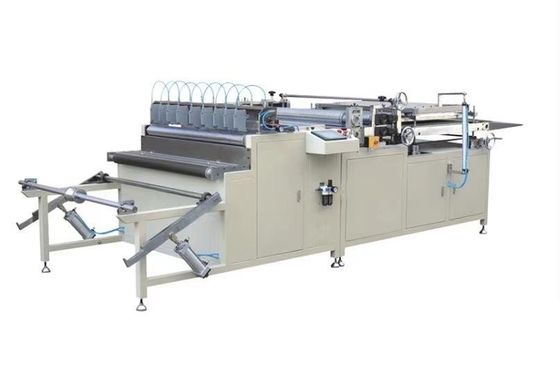

500mm Air Paper PPS Knife Pleating Machine
1. Product introduction
The clapping origami production line of our company is suitable for corrugated forming of various filter materials in filter manufacturing industry. The height of corrugation can be adjusted continuously, which is especially suitable for the processing of various products.Features of the machine:Automatic reciprocating folding machine is suitable for folding various materials, including filter paper, non-woven fabric, non-woven felt, wave fiber material, composite material, PP / PET polyester material, metal material. The end face of the folding material is flat, and the folding height is automatically adjustable.

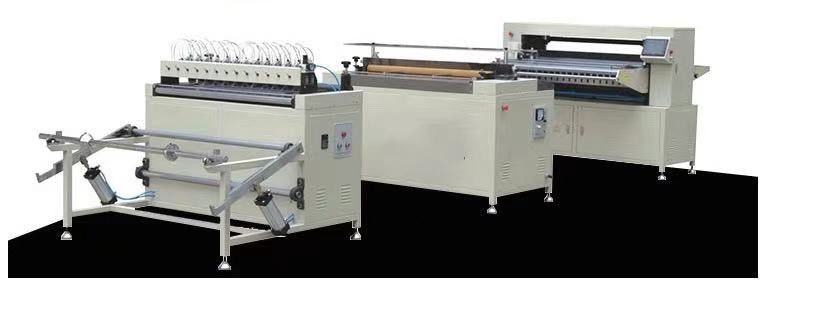

The full-automatic reciprocating origami machine is composed of material frame, slitting part and folding fixed part. The machine can not only fold single-layer materials, but also fold multi-layer materials, with more than 7 layers. The whole machine is driven by 7 servo motors to realize full four axis control.
2. Parameter table
| Compositions |
PPS(Polyphenylene sulfide) fiber |
| Weight(g/m2) |
500~550 |
| Thickness(mm) |
1.8~2.1 |
| Air permeability(m3/ m2/min) |
12~10 |
| Tension at break |
Warp |
>1100 |
| (N/5×20cm) |
Weft |
>1200 |
| Tensile Elongation |
Warp |
<35 |
| ( % ) |
Weft |
<55 |
| Prohibited to use temperature |
Below the dew point |
| Working Temperature |
Continuous |
170~190 |
| (℃) |
Instantaneous |
<220 |
| Anti-acid |
Super |
| Anti-alkali |
Super |
| Anti-abrasion |
Good |
| Post—treatment |
Size-fixing at high temperature, thread burning, dipping, coating etc |
| Product name |
Knife Pleating Machine |
| Advantage |
auto feeding,auto cutting,heater,folding |
| Material |
paper |
| Feature |

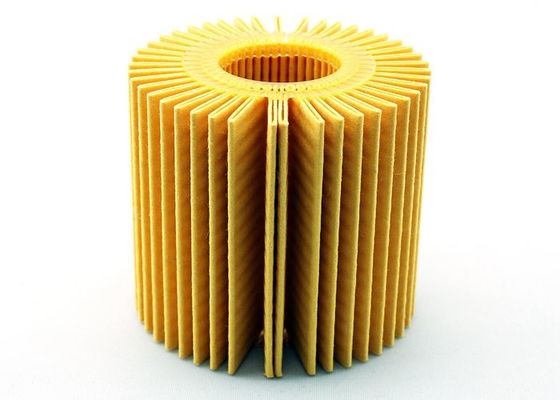

car air filter,carbon filter,oil filter. |
| supply ability |
10 Set/Sets per month /15 Set/Sets per month |
| Application |
product air filter |
| Efficiency |
99% |
| Certification |
CE ISO |
| (L*W*H) |
1670*1720*1240mm / 1430*1550*1400mm / Customer requirements |
| Basic weight |
2000KG-5800KG / 800KG / Customer requirements |
| Motor power |
2.1KW/ 1.5 kw / adjustable |
| Max width |
610mm-750mm / 1050mm / customizable |
| speed |
5-50m/min / customizable |
| Voltage |
380V / 220V |
| Warranty |
1Year |
| Working pressure |
0.6MPa /adjustable |
| Folding height |
18-75mm / 8-55mm / adjustable |
| Pleating speed |
0-200 pleatsc |
3. Product characteristics
The main advantage is that there is no need for the operator to adjust the folding height manually, and all parameters can be adjusted on the touch screen, which greatly reduces the adjustment time of the equipment required for replacing products, and makes the operation more convenient.
4. Technology
Automatic reciprocating folding machine is suitable for folding various materials
5. Product principle
The device is suitable for folding any filter paper material or multi-layer material.Applicable materials include filter paper, non-woven fabric, non-woven felt, wave fiber material, composite material, PP / PET polyester material, metal material.
6. Product use
The production line is suitable for automobile three-way industry, hydraulic industry, purification industry and water treatment industry.
7. Product advantage
All parameters can be adjusted on the touch screen without manual adjustment by the operator, which greatly reduces the equipment adjustment time required for product replacement and makes the operation more convenient.
1. The folding work of the paper folding machine is completed by alternating the upper and lower knives. The knife distance can be adjusted automatically by computer to meet the requirements of different folding heights. The size is accurate and even.
2. The filter paper completes the work of automatic counting, folding and preheating on the origami machine.
3. The machine can also fold all irregular folding height changes.
4. The folding knife angle of this machine can be changed at will to ensure that no filter paper material will be damaged in folding.
8. Service
Advantages 1.We have stock for the parts 2.High quality, Reliable and Durable 3.Short Lead Time 4.100% test before selling 5.Best after-sale service6.We can supply the samples to customers and accept the trial order with small quantity.
9. FAQ
1. Certificate:
RoHS, UL, SGS, MSDS, DIN53438
2. Payment terms:
After receiving the order, pay a 50% deposit, and keep the balance with the copy of the bill of lading.
3. Delivery date:
Approximately 7 working days (≤500), you can order according to your needs, so as to be faster.
4. Sample terms:
We can provide 1-2 small samples of the finished product, but the express delivery costs are borne by you.
5. Minimum order quantity:
For standard sizes, there is no strict principle, but for non-standard sizes or types, it is one.
6. Price terms:
Can provide EX-WORKS, FOB, CNF, CIF or DDU and it is up to you to decide.
7. Delivery time
A 40-foot container is 30 days, and two 40-foot containers are several weeks.

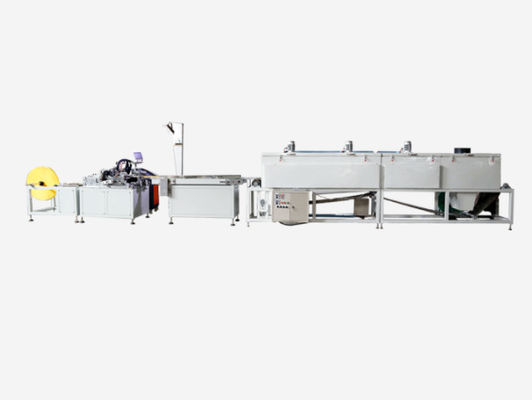

10. Production process(Standard Edition)
1. Large feed width 350mm / 550mm / 750mm / 950mm / 1150mm / 1950mm
2. Folding height: 5-60mm / 20-150mm
3. Folding speed: 20-180 fold / min
4. Heating temperature: room temperature - 200 C
11. Method of operation
All parameters can be adjusted on the touch screen without manual adjustment by the operator, which greatly reduces the equipment adjustment time required for product replacement and makes the operation more convenient.
1. The folding work of the paper folding machine is completed by alternating the upper and lower knives. The knife distance can be adjusted automatically by computer to meet the requirements of different folding heights. The size is accurate and even.
2. The filter paper completes the work of automatic counting, folding and preheating on the origami machine.
3. The machine can also fold all irregular folding height changes.
4. The folding knife angle of this machine can be changed at will to ensure that no filter paper material will be damaged in folding.
12. Do’s and don’ts
Please do not turn on the power switch of the machine without raw materials.
13. Company introduction
Hebei Anping Changfeng filter material Co., Ltd. is a solid factory for 25 years. Our company is a modern enterprise which produces and sells filter core raw materials, filter equipment and screen deep processing filter industry. After 25 years of efforts, it has gradually developed and expanded, with more than 300 engineers, technicians and workers. Our factory covers an area of 30 mu. 4 large workshops of 1000 square meters, two workshops of 500 square meters, with 30 press, 12 CNC punch machines, hydraulic press and lathe and other filter equipment welding machines.
The main products are: air filter equipment and all filter raw materials. Air filter, end cover, glue, filter paper, filter screen, rubber filter ring, rubber filter end cover mold, frame, filter equipment and other models are complete, high quality. The filter performance of automatic filter is high (good cleaning effect), automatic calorimeter (large capture quantity). It has long oscillation and high durability, which will not cause dust leakage. Water resistance, no blocking air entry, easy and light loading and unloading. In addition, there are screen deep processing filter products, oil and fuel engineering machine finished filter, petroleum ore screen pipe and other screen products. The company's products are sold to Russia, Britain, Africa, Australia and Southeast Asia and the Middle East and many other countries, well received by customers. Our company has a complete and scientific quality management system. The products are of good quality and various specifications. We uphold the business philosophy of "honesty, good quality, customer first", and in the spirit of mutual benefit, we are willing to establish good business relations with businesses all over the world. In the face of increasingly fierce market competition, the company carries out all staff training, cultivates talents, changes ideas, improves, strengthens cultivation, adjusts strategies, transforms local advantages into the core competitiveness of survival first and development later, so as to maintain a stable development momentum and meet challenges in the new century. Anping Changfeng filter material Co., Ltd. is recognized by customers for its integrity, strength and product quality. We should be responsible for every customer and every product.
Hebei Anping Changfeng Co., Ltd. is located in No.5 filter material city, Anping County, Hebei Province, which is "the hometown of China international silk screen". It is adjacent to Beijing, Tianjin, Shijiazhuang, Baoding, Hengshui and other large and medium-sized cities, with superior geographical location and developed transportation and logistics. It is 250 kilometers away from Beijing Capital Airport and 200 kilometers away from Tianjin port. Welcome friends from all over the world to visit, guide and business negotiation. We will serve you wholeheartedly.
