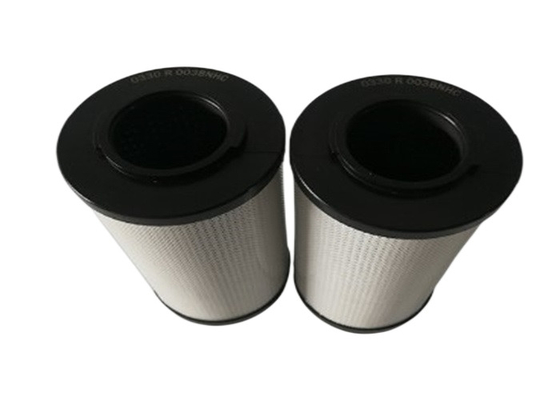

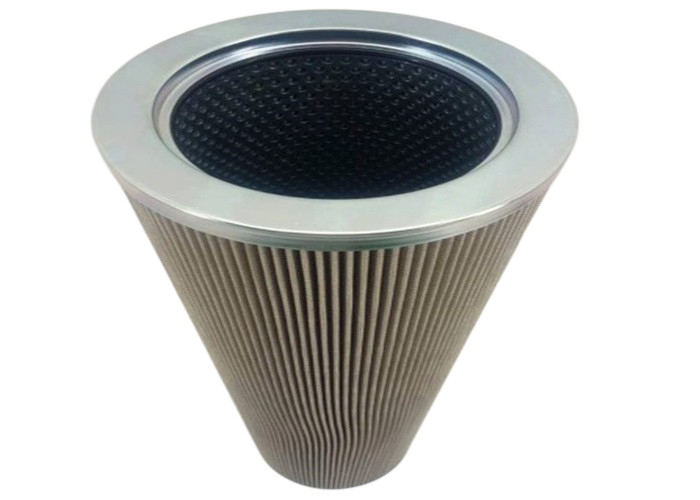

High Resistant Stainless Steel Housing Filter Sintered Hydraulic

Product Details:

Place of Origin:	An Ping China
Brand Name:	Chang Feng
Certification:	ISO9001
Model Number:	9009-08-10-2

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	>=10 Sets $72.00
Packaging Details:	wooden box packing Customized by customer requires
Delivery Time:	10-15 work days 1 - 100 Set
Payment Terms:	L/C, T/T
Supply Ability:	500 Set/Sets per Month

Contact Now

Detailed Product Description

Product Name:	Stainless Steel Filter Element	Micron Rating:	15
Core Components:	Filter	Warranty:	1 Year
Certificate:	ISO9001	Sample:	Avaliable
Marketing Type:	Ordinary Product	We Are Factory:	25 Years Experience
Local Service Location:	Avaliable	Surface Treatment:	Smooth
High Light:	high resistant stainless steel housing filter , sintered hydraulic stainless steel housing filter , high resistant sintered ss filter

High Resistant Sintered Hydraulic Filter Stainless Steel Housing Filter

1. Product introduction

Stainless steel filter core is the professional terminology of the filtration industry, a filter core, the main filter material using multi-layer stainless steel sintering screen.

The main filter material is made of multi-layer stainless steel sintering screen, the filtering precision is 0.5-200um, and the shape and size of the filter material can be processed according to the user’s requirements.

2. Parameter table

Absolute Filter Rating	Bubble Piont Pressure	Average Air Permeability	Thichness	Weight	Porosity	Dirt Holding Capacity
(渭)	(Pa)	(l/dm2/min)	(mm)	(g/m2)	(%)	(mg/cm2)
3	12300	9	0.35	975	65	6.4
5	7600	34	0.34	600	78	5.47
7	5045	57	0.27	600	72	6.47
10	3700	100	0.32	600	77	7.56
15	2470	175	0.37	600	80	7.92
20	1850	255	0.49	750	81	12.44
25	1480	320	0.61	1050	79	19.38
30	1235	455	0.63	1050	79	23.07
40	925	580	0.66	1200	77	25.96
60	630	1000	0.7	750	87	33.97
Product name	mesh wire cloth filter disc
Material	ss304 316 316L
Core Components	Engine,Pressure vessel,Pump
Thickness	0.2mm / 0.05mm~3.5mm / 0.5mm-1mm / According to customer requirements
Filtration Grade/Rating	25micron 50micron / 99% / 60-95% / According to customer requirements
Application	Energy,Mining,terp filtering
Type	Filter Cylinder
Hole Shape	According to customer requirements
Working system	hydraulic and fuel ssystem
(LWH)	standards/can be customized
Basic weight	According to customer requirements
Certification	ISO9001
Weaving	plain weave,twill weave,plain dutch,twill dutch,reverse dutch
Length	According to customer request / 10mm-1000mm
Micron size	20-150micron
Mesh count	According to customer requirements

4. Technology

The filter element can be used as a dispersion cooling material in high temperature working environment. The filter element product can be used in the high-pressure backwash oil filter. This kind of filter element product can be used in some high temperature and high pressure fine filter instrument. This filter element is often used in water treatment and gas filtration systems, as well as in some food and beverage industries, pharmaceutical industries, chemical and chemical fiber manufacturing industries, as well as some oil, polyester and other filtration processes.

5. Product principle

Filter element is a professional term in the filtration industry. In order to purify the original ecological resources and reuse resources, it needs purification equipment. Filter element is mainly used in oil filtration, air filtration, water filtration and other filtration industries. Removing a small amount of solid particles from the liquid or air can protect the normal operation of the equipment or the cleanness of the air. When the fluid enters the filter element with a certain specification filter screen, its impurities are blocked, and the clean flow flows out through the filter element.

6.Service

We are providing free storage area for clients to achieve mixmum loading purposes.

7.Method of operation

The net distance between equipment shall not be less than 1500mm; The net distance between the equipment and the wall shall not be less than 1000mm; No less than 500mm maintenance space shall be reserved around the equipment and.

8.Do’s and don’ts

Please confirm the product specifications, and be careful not to neglect that the product is inappropriate
