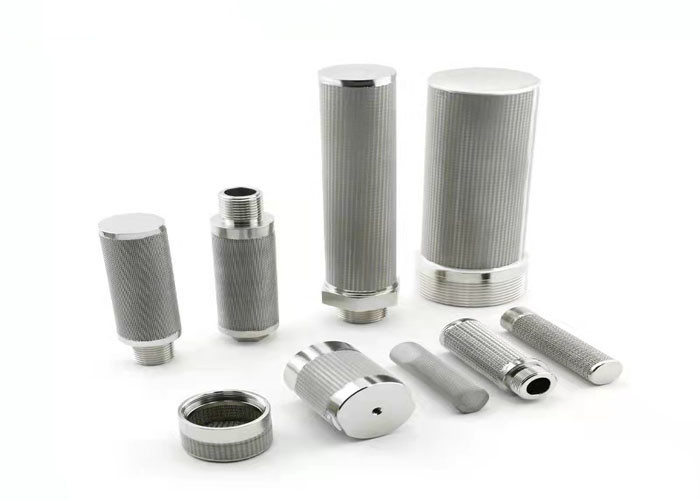

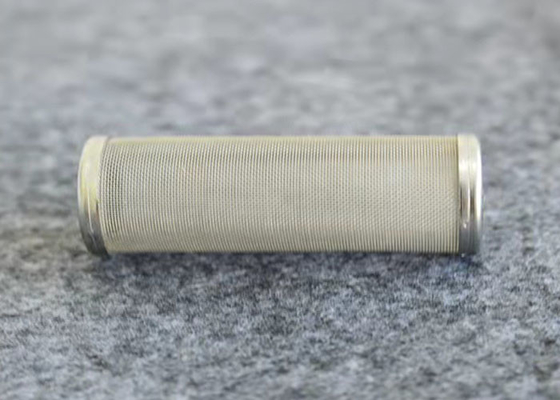

Welded Round Hole Mesh Iso9001 Metal Filter Cartridge 250mm Length

Welded Round Hole Mesh Iso9001 Metal Filter Cartridge 250mm Length

  • Welded Round Hole Mesh Iso9001 Metal Filter Cartridge 250mm Length
  • Welded Round Hole Mesh Iso9001 Metal Filter Cartridge 250mm Length
Welded Round Hole Mesh Iso9001 Metal Filter Cartridge 250mm Length
Product Details:
Place of Origin: An Ping China
Brand Name: Chang Feng
Certification: ISO9001
Model Number: 9009-03-06
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: >=10 Sets $72.00
Packaging Details: wooden box packing Customized by customer requires
Delivery Time: 10-15 work days 1 - 100 Set
Payment Terms: L/C, T/T
Supply Ability: 500 Set/Sets per Month
Contact Now
Detailed Product Description
Product Name: Stainless Steel Filter Element Place Of Origin: An Ping China
Certificate: ISO9001 Length: 250mm
Texture Of Material: Stainless Steel Warranty Of Core Components: Not Available
After-sales Service Provided: Online Support Packing: Wooden Cases
Sample: Avaliable Sample Surface Treatment: Double Punching
High Light:

iso9001 metal filter cartridge


250mm length metal filter cartridge


250mm length stainless steel filter cartridge

Welded Round Hole Mesh Of Metal Filter Cartridge Stainless Steel Filter Element


1. Product introduction


The filter element is the heart of the filter and the main principle of filter operation. It is a purification equipment for purifying resources and increasing the reuse of resources. The filter element is generally mainly used for oil, water and air filtration to remove impurities in the medium and protect the normal operation of the equipment or the cleanness of the air. Filtration is divided into normal temperature filtration and high temperature filtration, with some special filtration. The filter elements are classified into PP filter element, wire wound filter element, folding filter element, activated carbon filter element, etc. Ruilong purification produces various types of filter elements or filter screens and other filter materials with high filtration precision. According to different equipment requirements, a variety of product types can ensure the filtration effect of different precision.

2. Parameter table

Absolute Filter Rating Bubble Piont Pressure Average Air Permeability Thichness Weight Porosity Dirt Holding Capacity
(渭) (Pa) (l/dm2/min) (mm) (g/m2) (%) (mg/cm2)
3 12300 9 0.35 975 65 6.4
5 7600 34 0.34 600 78 5.47
7 5045 57 0.27 600 72 6.47
10 3700 100 0.32 600 77 7.56
15 2470 175 0.37 600 80 7.92
20 1850 255 0.49 750 81 12.44
25 1480 320 0.61 1050 79 19.38
30 1235 455 0.63 1050 79 23.07
40 925 580 0.66 1200 77 25.96
60 630 1000 0.7 750 87 33.97
CF9009-02-03 SEAL/ O-RING

3. Product characteristics

The stability of the stainless steel filter is very strong. The material used in the stainless steel filter is an alloy material. The stability and various resistance and resistance of this material are far superior to the traditional filter production materials, which also allows the stainless steel to filter. The service life of the filter is longer, it can better complete the filtration work in a harsh production environment, and the maintenance frequency is not very high, and the service life is relatively long.



4. Matters Needing Attention



The new filter element is sealed by the manufacturer in a plastic bag in a clean production plant. Do not tear the plastic package when not in use. Use the filter element with high requirements. After installation, it shall be sterilized by high-temperature steam.



5. Test Standard:

Our filter elements are tested according to ISO 2943
Compatibility with hydraulic fluids ISO 3968
Flow characteristics ISO/DIS 3724
Flow fatigue characteristics ISO/DIS 4572
Filter performance test (Multi-pass test) ISO 2942
Proof of integrity and quality (Bubble point test) ISO 3723
Verifiion of the end cap stress ISO 2941
Collapse / burst pressure verifiion

6. Company introduction
Hebei Anping Changfeng filter material Co., Ltd. is a solid factory for 25 years. Our company is a modern enterprise which produces and sells filter core raw materials, filter equipment and screen deep processing filter industry. After 25 years of efforts, it has gradually developed and expanded, with more than 300 engineers, technicians and workers. Our factory covers an area of 30 mu. 4 large workshops of 1000 square meters, two workshops of 500 square meters, with 30 press, 12 CNC punch machines, hydraulic press and lathe and other filter equipment welding machines.
The main products are: air filter equipment and all filter raw materials. Air filter, end cover, glue, filter paper, filter screen, rubber filter ring, rubber filter end cover mold, frame, filter equipment and other models are complete, high quality. The filter performance of automatic filter is high (good cleaning effect), automatic calorimeter (large capture quantity). It has long oscillation and high durability, which will not cause dust leakage. Water resistance, no blocking air entry, easy and light loading and unloading. In addition, there are screen deep processing filter products, oil and fuel engineering machine finished filter, petroleum ore screen pipe and other screen products. The company's products are sold to Russia, Britain, Africa, Australia and Southeast Asia and the Middle East and many other countries, well received by customers. Our company has a complete and scientific quality management system. The products are of good quality and various specifications. We uphold the business philosophy of "honesty, good quality, customer first", and in the spirit of mutual benefit, we are willing to establish good business relations with businesses all over the world. In the face of increasingly fierce market competition, the company carries out all staff training, cultivates talents, changes ideas, improves, strengthens cultivation, adjusts strategies, transforms local advantages into the core competitiveness of survival first and development later, so as to maintain a stable development momentum and meet challenges in the new century. Anping Changfeng filter material Co., Ltd. is recognized by customers for its integrity, strength and product quality. We should be responsible for every customer and every product.
Hebei Anping Changfeng Co., Ltd. is located in No.5 filter material city, Anping County, Hebei Province, which is "the hometown of China international silk screen". It is adjacent to Beijing, Tianjin, Shijiazhuang, Baoding, Hengshui and other large and medium-sized cities, with superior geographical location and developed transportation and logistics. It is 250 kilometers away from Beijing Capital Airport and 200 kilometers away from Tianjin port. Welcome friends from all over the world to visit, guide and business negotiation. We will serve you wholeheartedly.

Welded Round Hole Mesh Iso9001 Metal Filter Cartridge 250mm Length 0
Welded Round Hole Mesh Iso9001 Metal Filter Cartridge 250mm Length 1

Welded Round Hole Mesh Iso9001 Metal Filter Cartridge 250mm Length 2Welded Round Hole Mesh Iso9001 Metal Filter Cartridge 250mm Length 3


Welded Round Hole Mesh Iso9001 Metal Filter Cartridge 250mm Length 4Welded Round Hole Mesh Iso9001 Metal Filter Cartridge 250mm Length 5
