304 316 Stainless Steel Filter Element 975 g/m2 25micron Filtration Grade

Product Details:

Place of Origin:	An Ping China
Brand Name:	Chang Feng
Certification:	ISO9001
Model Number:	9009-02-00

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	>=10 Sets $72.00
Packaging Details:	wooden box packing Customized by customer requires
Delivery Time:	10-15 work days 1 - 100 Set
Payment Terms:	L/C, T/T
Supply Ability:	500 Set/Sets per Month

Contact Now

Detailed Product Description

Product Name:	Stainless Steel Filter Element	Micron Rating:	10
Certificate:	CE,ISO,SGS	Core Components:	Filter
Length:	250mm	OD:	65mm
After-sales Service Provided:	Online Support	Packing:	Wooden Cases
Marketing Type:	Ordinary Product	Local Service Location:	Local Service Location:
High Light:	25micron stainless steel sediment filter , 304 316 Stainless Steel Filter Element , 975 G/M2 Stainless Steel Filter Element

Stainless Steel 304 316 Material Filter Cartridge For Chemical Plant Stainless Steel Filter Element

1. Product introduction

The main filter material he uses 304 304L, 316 316L (1) stainless steel fiber felt and stainless steel woven mesh filter medium, filter sealing surface combined with argon welding technology, multilayer filter The folding process consists of a complete filter with no leakage and no dielectric loss. The sintered stainless steel felt is a stainless steel fiber, which is made by porous sinter at high temperature .

2. Parameter table

Absolute Filter Rating	Bubble Piont Pressure	Average Air Permeability	Thichness	Weight	Porosity	Dirt Holding Capacity
(渭)	(Pa)	(l/dm2/min)	(mm)	(g/m2)	(%)	(mg/cm2)
3	12300	9	0.35	975	65	6.4
5	7600	34	0.34	600	78	5.47
7	5045	57	0.27	600	72	6.47
10	3700	100	0.32	600	77	7.56
15	2470	175	0.37	600	80	7.92
20	1850	255	0.49	750	81	12.44
25	1480	320	0.61	1050	79	19.38
30	1235	455	0.63	1050	79	23.07
40	925	580	0.66	1200	77	25.96
60	630	1000	0.7	750	87	33.97
Product name	mesh wire cloth filter disc
Material	ss304 316 316L
Core Components	Engine,Pressure vessel,Pump
Thickness	0.2mm / 0.05mm~3.5mm / 0.5mm-1mm / According to customer requirements
Filtration Grade/Rating	25micron 50micron / 99% / 60-95% / According to customer requirements
Application	Energy,Mining,terp filtering
Type	Filter Cylinder
Hole Shape	According to customer requirements
Working system	hydraulic and fuel ssystem
(LWH)	standards/can be customized
Basic weight	According to customer requirements
Certification	ISO9001
Weaving	plain weave,twill weave,plain dutch,twill dutch,reverse dutch
Length	According to customer request / 10mm-1000mm
Micron size	20-150micron
Mesh count	According to customer requirements

3. Product characteristics

1. High temperature and high pressure, chemical resistance
2. Excellent breathability, large amount of dirt, high strength, good sealing, long life, and can be used for repeated use
3. Can be made into cylindrical or folded cylinder structure, the folded filter area is 3-5 times the cylindrical area
4.Working temperature: -60-500°C
5. Filter element withstands the max.pressure difference: 2MPa

4. Technology

Precision filtration

Large oil-passing capacity, low original pressure loss and large dirt holding capacity.

High reliability

Place on the suction side of the pump to prevent debris from entering the system and keep the pump and system clean.

High temperature resistant

The maximum working oil temperature is 250 degrees, suitable for all kinds of mineral oil, gasoline and other working oils.

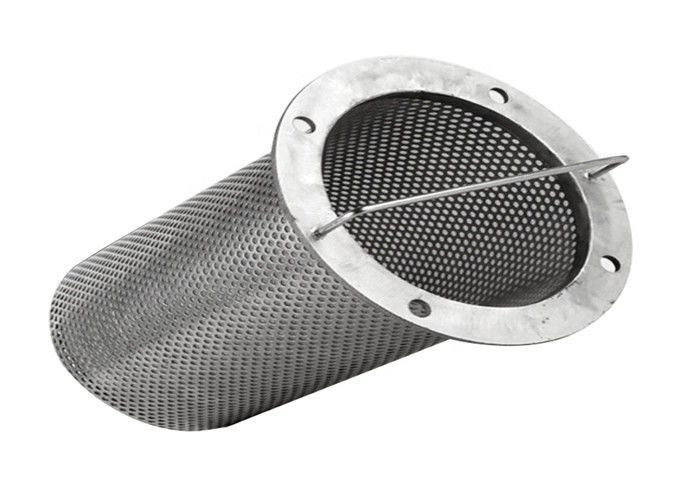

304 316 Stainless Steel Filter Element 975 g/m2 25micron Filtration Grade 0
