Smooth Stainless Steel Filter Element , 316L Stainless Steel Uv Filter

Product Details:

Place of Origin:	An Ping China
Brand Name:	Chang Feng
Certification:	ISO9001
Model Number:	9009-02-00

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	>=10 Sets $72.00
Packaging Details:	wooden box packing Customized by customer requires
Delivery Time:	10-15 work days 1 - 100 Set
Payment Terms:	L/C, T/T
Supply Ability:	500 Set/Sets per Month

Contact Now

Detailed Product Description

Product Name:	Stainless Steel Filter Element	Certificate:	ISO9001
Surface Treatment:	Smooth	Core Components:	Filter
After-sales Service Provided:	Online Support	Sample:	Avaliable Sample
Packing:	Wooden Cases	Application:	Kinds Filtration Industry
After Warranty Service:	No Service, Online Support	Applicable Industries:	Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Energy & Mining
High Light:	316L Stainless Steel Uv Filter , 630 pa Stainless Steel Filter Element , 0.66 mm Stainless Steel Filter Element

Food Processing Machinery Parts, Industrial Machinery Stainless Steel Parts Stainless Steel Filter Element

1. Product introduction

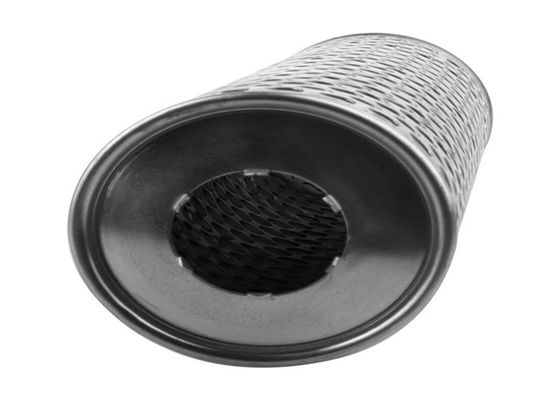

Multi-layer Stainless Steel Pleated filter cartridge for polymer Melt Filtration assemblies compose of replaceable filter media body and the removable hardware: connector, inner support and end fitting.

2. Parameter table

Absolute Filter Rating	Bubble Piont Pressure	Average Air Permeability	Thichness	Weight	Porosity	Dirt Holding Capacity
(渭)	(Pa)	(l/dm2/min)	(mm)	(g/m2)	(%)	(mg/cm2)
3	12300	9	0.35	975	65	6.4
5	7600	34	0.34	600	78	5.47
7	5045	57	0.27	600	72	6.47
10	3700	100	0.32	600	77	7.56
15	2470	175	0.37	600	80	7.92
20	1850	255	0.49	750	81	12.44
25	1480	320	0.61	1050	79	19.38
30	1235	455	0.63	1050	79	23.07
40	925	580	0.66	1200	77	25.96
60	630	1000	0.7	750	87	33.97

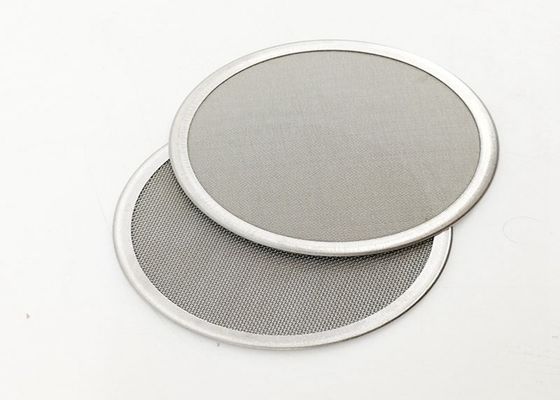

Product name	mesh wire cloth filter disc
Material	ss304 316 316L
Core Components	Engine,Pressure vessel,Pump
Thickness	0.2mm / 0.05mm~3.5mm / 0.5mm-1mm / According to customer requirements
Filtration Grade/Rating	25micron 50micron / 99% / 60-95% / According to customer requirements
Application	Energy,Mining,terp filtering
Type	Filter Cylinder
Hole Shape	According to customer requirements
Working system	hydraulic and fuel ssystem
(LWH)	standards/can be customized
Basic weight	According to customer requirements
Certification	ISO9001
Weaving	plain weave,twill weave,plain dutch,twill dutch,reverse dutch
Length	According to customer request / 10mm-1000mm
Micron size	20-150micron
Mesh count	According to customer requirements

3. Technology

EPDM as standard, Nitrile, PTFE, silicone, Viton and PTFE coated viton avaliable on request or by process selection.

4. Product use

Application:Products are widely used in petrolum, chemical, chemical fiber, aviation, aerospace, nuclear industry, pharmaceutical, metallurgy, electric power, water treatment, food and beverage, coal chemical and other industries.

5. FAQ

Pre-sale Service

1. We will try our best to find a lowest freight cost for customers reference.

2. We have full stock, and can deliver within short time. Many styles for you to choose.

3. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.

4. All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.

After you choose

1. We will count cheapest shipping cost and make invoice to you at once.

2. Check quality again, then send out to you at 1-2 working day after your payment,

3. Email you the tracking no, and help to chase the parcels until it arrive you.

After-sale service

1. We are very glad that customer give us some suggestion for price and products.

2. If any question, please contact with us freely by E-mail or Telephone.
