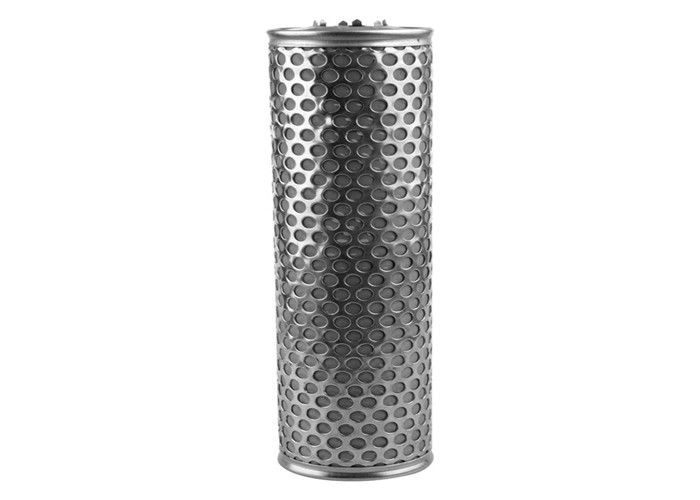

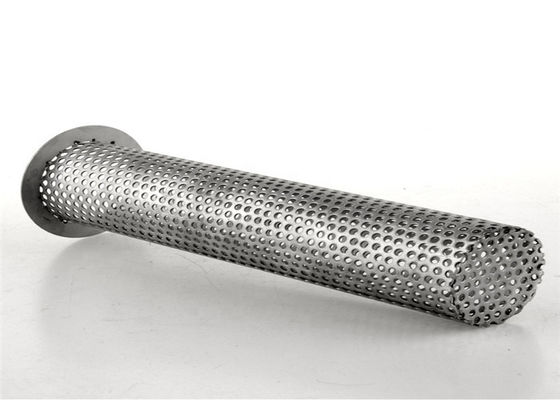

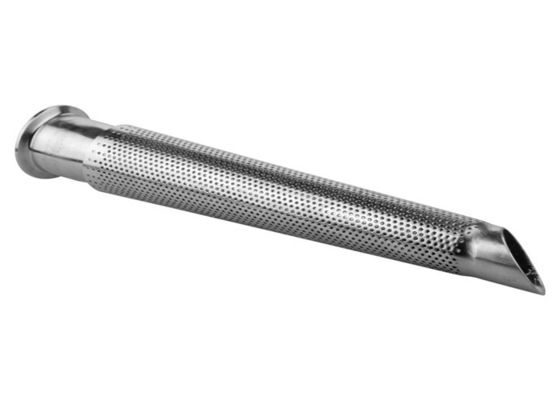

Customized According To Drawings, Metal Cylindrical Filter Cartridge With Holes Stainless Steel Filter Element
1. Product introduction

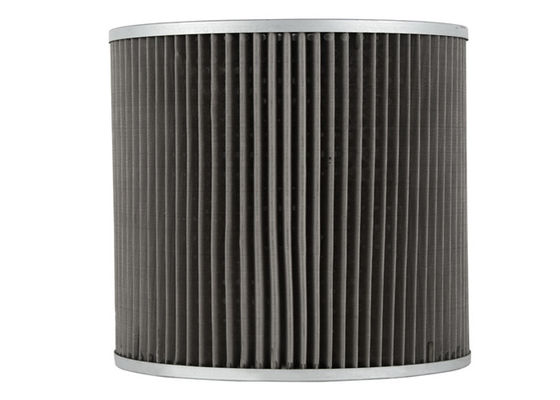

Multi-layer Stainless Steel Pleated filter cartridge for polymer Melt Filtration assemblies compose of replaceable filter media body and the removable hardware: connector, inner support and end fitting.
2. Parameter table
| Absolute Filter Rating |
Bubble Piont Pressure |
Average Air Permeability |
Thichness |
Weight |
Porosity |
Dirt Holding Capacity |
| (渭) |
(Pa) |
(l/dm2/min) |
(mm) |
(g/m2) |
(%) |
(mg/cm2) |
| 3 |
12300 |
9 |
0.35 |
975 |
65 |
6.4 |
| 5 |
7600 |
34 |
0.34 |
600 |
78 |
5.47 |
| 7 |
5045 |
57 |
0.27 |
600 |
72 |
6.47 |
| 10 |
3700 |
100 |
0.32 |
600 |
77 |
7.56 |
| 15 |
2470 |
175 |
0.37 |
600 |
80 |
7.92 |
| 20 |
1850 |
255 |
0.49 |
750 |
81 |
12.44 |
| 25 |
1480 |
320 |
0.61 |
1050 |
79 |
19.38 |
| 30 |
1235 |
455 |
0.63 |
1050 |
79 |
23.07 |
| 40 |
925 |
580 |
0.66 |
1200 |
77 |
25.96 |
| 60 |
630 |
1000 |
0.7 |
750 |
87 |
33.97 |
| Product name |
mesh wire cloth filter disc |
| Material |
ss304 316 316L |
| Core Components |
Engine,Pressure vessel,Pump |
| Thickness |
0.2mm / 0.05mm~3.5mm / 0.5mm-1mm / According to customer requirements |
| Filtration Grade/Rating |
25micron 50micron / 99% / 60-95% / According to customer requirements |
| Application |
Energy,Mining,terp filtering |
| Type |
Filter Cylinder |
| Hole Shape |
According to customer requirements |
| Working system |
hydraulic and fuel ssystem |
| (L*W*H) |
standards/can be customized |
| Basic weight |
According to customer requirements |
| Certification |
ISO9001 |
| Weaving |
plain weave,twill weave,plain dutch,twill dutch,reverse dutch |
| Length |
According to customer request / 10mm-1000mm |
| Micron size |
20-150micron |
| Mesh count |
According to customer requirements |
3. Product characteristics
Stainless steel sintered fiber web is a kind of multi pore deep filter media, sintered with stainless steel fiber at the high temperature.The filter elements enjoy the advantage of high porosity, large filter area and good dirt holding capacity, and can also be used repeatly after chemical cleaning.
4. Service
We are providing free storage area for clients to achieve mixmum loading purposes.
5. FAQ
1. who are we? We are based in Hebei, China, start from 2012,sell to Domestic Market(20.00%),North America(18.00%),Western Europe(12.00%),Eastern Europe(10.00%),Southeast Asia(10.00%),Oceania(10.00%),Mid East(8.00%),Southern Europe(3.00%),South Asia(3.00%),Eastern Asia(3.00%),Northern Europe(3.00%). There are total about 51-100 people in our office.
how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment;
what can you buy from us?
Filter Mesh,Sintered Mesh Filter,Filter Basket,Filter Tube,Metal Basket
why should you buy from us not from other suppliers?
Anping Chang Feng hardware wire mesh products factory was founded in 2002.Covers an area of more than 20 acres, more than 50 employees, more than 10 professional and technical personnel and senior engineer.
what services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR; Accepted Payment Type: T/T,L/C,Western Union; Language Spoken:English,Chinese,Japanese,Russian
