50micron Stainless Steel Filter Element With Pressure Vessel For Mining

Product Details:

Place of Origin:	An Ping China
Brand Name:	Chang Feng
Certification:	ISO9001
Model Number:	9009-02-00

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	>=10 Sets $72.00
Packaging Details:	wooden box packing Customized by customer requires
Delivery Time:	10-15 work days 1 - 100 Set
Payment Terms:	L/C, T/T
Supply Ability:	500 Set/Sets per Month

Contact Now

Detailed Product Description

Product Name:	Stainless Steel Filter Element	Certificate:	ISO9001
Sample:	Avaliable Sample	Surface Treatment:	Smooth
Local Service Location:	Local Service Location:	Marketing Type:	Ordinary Product
Core Components:	Filter	Warranty:	1 Year
We Are Facto：ry:	20 Years Experience	Micron Rating:	10
High Light:	cylindrical hepa filter , Pressure Vessel Stainless Steel Filter Element , 50micron Stainless Steel Filter Element

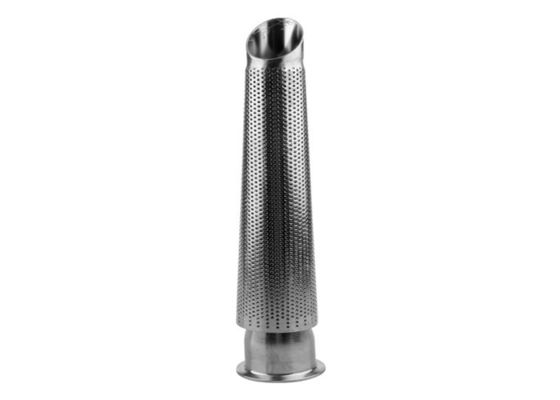

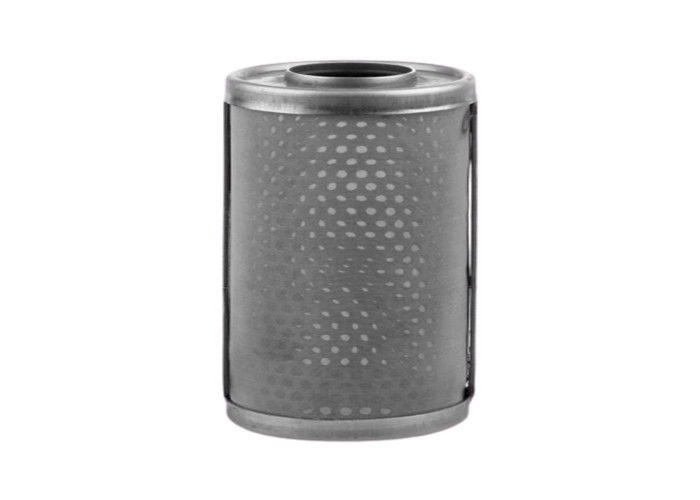

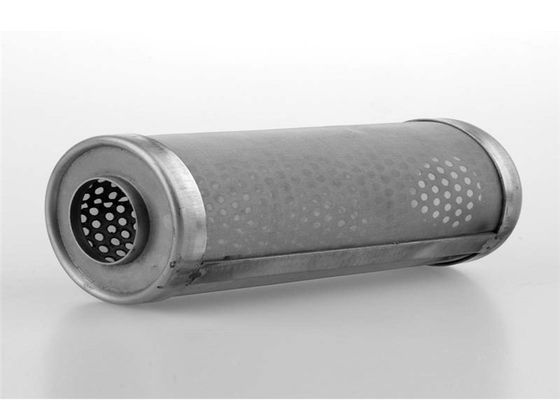

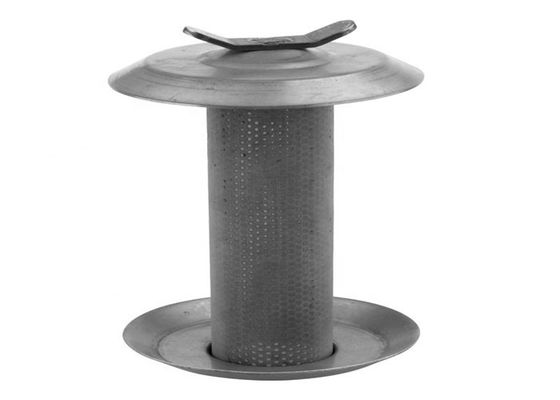

Punching Processing Filter Accessory Cylinder, Stainless Steel Filter Cylinder, Customized, Square Hole, Round Hole.

1. Product introduction

Multi-layer Stainless Steel Pleated filter cartridge for polymer Melt Filtration assemblies compose of replaceable filter media body and the removable hardware: connector, inner support and end fitting.

2. Parameter table

Absolute Filter Rating	Bubble Piont Pressure	Average Air Permeability	Thichness	Weight	Porosity	Dirt Holding Capacity
(渭)	(Pa)	(l/dm2/min)	(mm)	(g/m2)	(%)	(mg/cm2)
3	12300	9	0.35	975	65	6.4
5	7600	34	0.34	600	78	5.47
7	5045	57	0.27	600	72	6.47
10	3700	100	0.32	600	77	7.56
15	2470	175	0.37	600	80	7.92
20	1850	255	0.49	750	81	12.44
25	1480	320	0.61	1050	79	19.38
30	1235	455	0.63	1050	79	23.07
40	925	580	0.66	1200	77	25.96
60	630	1000	0.7	750	87	33.97
Product name	mesh wire cloth filter disc
Material	ss304 316 316L
Core Components	Engine,Pressure vessel,Pump
Thickness	0.2mm / 0.05mm~3.5mm / 0.5mm-1mm / According to customer requirements
Filtration Grade/Rating	25micron 50micron / 99% / 60-95% / According to customer requirements
Application	Energy,Mining,terp filtering
Type	Filter Cylinder
Hole Shape	According to customer requirements
Working system	hydraulic and fuel ssystem
(LWH)	standards/can be customized
Basic weight	According to customer requirements
Certification	ISO9001
Weaving	plain weave,twill weave,plain dutch,twill dutch,reverse dutch
Length	According to customer request / 10mm-1000mm
Micron size	20-150micron
Mesh count	According to customer requirements

4. Technology

EPDM as standard, Nitrile, PTFE, silicone, Viton and PTFE coated viton avaliable on request or by process selection.

5. Product principle

8. Service

We are providing free storage area for clients to achieve mixmum loading purposes.

11. Method of operation

Packaging Details:1.waterproof paper inside,plastic film outside,then in wooden box 2.waterproof paper inside,plastic film outside,then in wooden pallet 3.Also we can as per your requirements

12. Do’s and don’ts

Please confirm the product specifications, and be careful not to neglect that the product is inappropriate

50micron Stainless Steel Filter Element With Pressure Vessel For Mining 0
