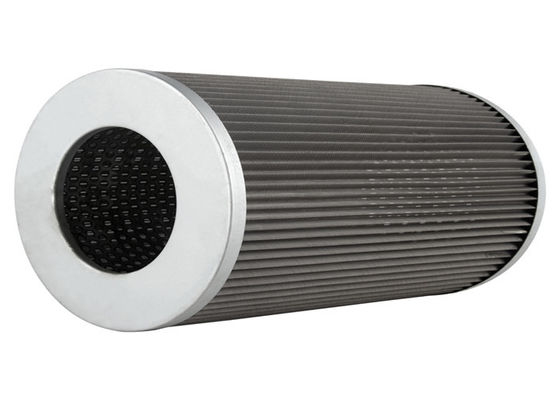

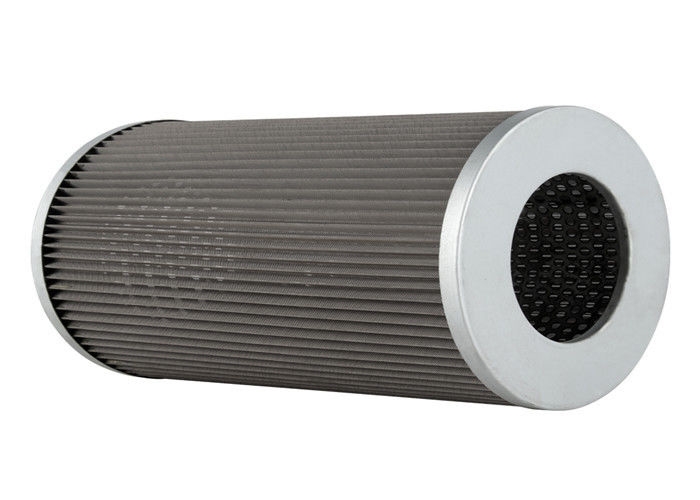

Hydraulic Oil Filter Element 175-60-27380 PT539 1756-02-7380

Product Details:

Place of Origin:	An Ping China
Brand Name:	Chang Feng
Certification:	ISO9001
Model Number:	9009-02-00

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	>=10 Sets $72.00
Packaging Details:	wooden box packing Customized by customer requires
Delivery Time:	10-15 work days 1 - 100 Set
Payment Terms:	L/C, T/T
Supply Ability:	500 Set/Sets per Month

Contact Now

Detailed Product Description

Product Name:	Stainless Steel Filter Element	After-sales Service Provided:	Online Support
Application:	Kinds Filtration Industry	Certificate:	ISO9001
Sample:	Avaliable Sample	Packing:	Wooden Cases
Surface Treatment:	Smooth	Core Components:	Filter
OE NO:	PT539, 175-60-27380, HF6101, 1756-02-7380	Model:	NT855, NTA855, D85A, PC150-3, PC180-3
High Light:	PT539 hydraulic oil filter element , 175-60-27380 hydraulic oil filter element , 1756-02-7380 hydraulic oil filter element

175-60-27380 PT539 HF6101 1756-02-7380 Hydraulic Oil Filter Element Stainless Steel Filter Element

1. Product introduction

High quality replacement filter,air filter,fuel filter,oil filter,Hydraulic filter for Engineering and construction machinery equipment,such as excavator,dozer,crane,roller,loader,drill etc.

2. Parameter table

Absolute Filter Rating	Bubble Piont Pressure	Average Air Permeability	Thichness	Weight	Porosity	Dirt Holding Capacity
(渭)	(Pa)	(l/dm2/min)	(mm)	(g/m2)	(%)	(mg/cm2)
3	12300	9	0.35	975	65	6.4
5	7600	34	0.34	600	78	5.47
7	5045	57	0.27	600	72	6.47
10	3700	100	0.32	600	77	7.56
15	2470	175	0.37	600	80	7.92
20	1850	255	0.49	750	81	12.44
25	1480	320	0.61	1050	79	19.38
30	1235	455	0.63	1050	79	23.07
40	925	580	0.66	1200	77	25.96
60	630	1000	0.7	750	87	33.97
Product name	mesh wire cloth filter disc
Material	ss304 316 316L
Core Components	Engine,Pressure vessel,Pump
Thickness	0.2mm / 0.05mm~3.5mm / 0.5mm-1mm / According to customer requirements
Filtration Grade/Rating	25micron 50micron / 99% / 60-95% / According to customer requirements
Application	Energy,Mining,terp filtering
Type	Filter Cylinder
Hole Shape	According to customer requirements
Working system	hydraulic and fuel ssystem
(LWH)	standards/can be customized
Basic weight	According to customer requirements
Certification	ISO9001
Weaving	plain weave,twill weave,plain dutch,twill dutch,reverse dutch
Length	According to customer request / 10mm-1000mm
Micron size	20-150micron
Mesh count	According to customer requirements

3. Technology

EPDM as standard, Nitrile, PTFE, silicone, Viton and PTFE coated viton avaliable on request or by process selection.

4. Product principle

Multi-layer Stainless Steel Pleated filter cartridge for polymer Melt Filtration assemblies compose of replaceable filter media body and the removable hardware: connector, inner support and end fitting.
